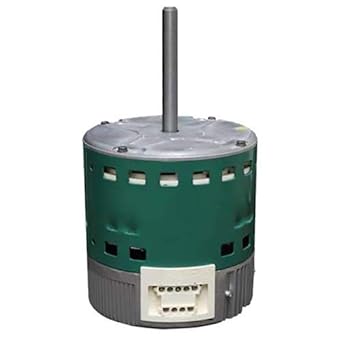

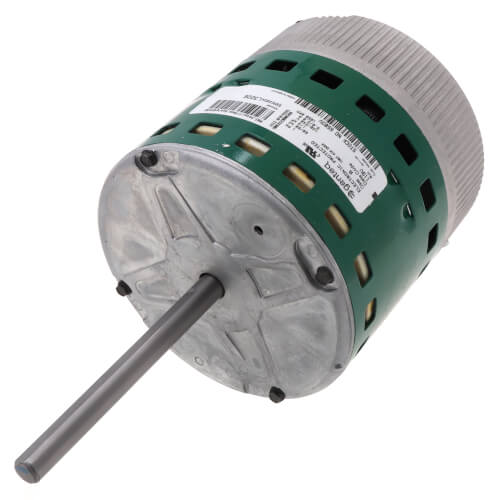

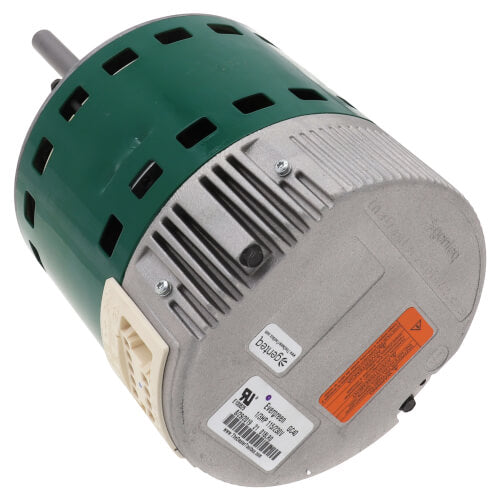

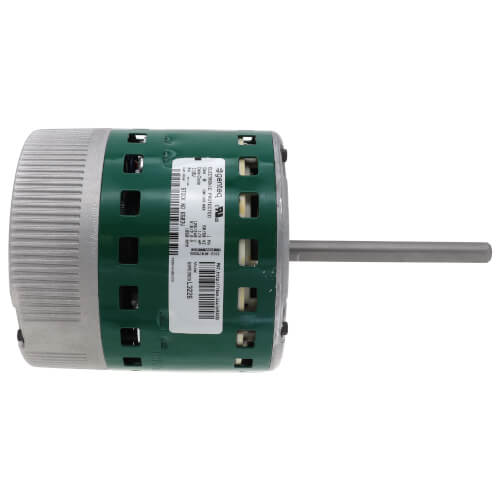

AMERICA 6503V Evergreen VS Motor 1/3 HP REPLACEMENT MPN

Product Description

The AMERICA 6503V Evergreen VS motor is a reliable replacement for Genteq constant airflow ECM indoor blower motors, including Genteq models 2.3, Eon, and 3.0. This unit features dual voltage capabilities and offers both clockwise and counter-clockwise rotation. Operating at one thousand fifty RPM, it is effective for continuous air over applications.

• Pre-programmed for easy setup.
• Dual voltage and rotation options enhance versatility.
• Designed to maintain system efficiency and performance.

Product Highlights

The AMERICA 6503V motor is crafted for efficient airflow and reliable operation in HVAC systems.

Product Information

Standard Information

• Brand: AMERICA
• MPN: 6503V

Technical Specifications

• Horse Power: 1/3
• Voltage: 120/240V
• Type: ECM
• Rotation: CW/CCW
• Duty: Continuous Air Over
• RPM: 1050
• FLA: 5.0/2.8
• Mount: Round
• Amperage: 2.8, 5
• Bearings: Ball
• Enclosure Type: Open Air Over
• Poles: 12
• Phase: 1
• Speeds: 1
• Overload Protection: None
• Insulation Class: B
• Frame: 48
• Max Ambient Temp (°F): 104°F
• Motor Orientation: Vertical Shaft Down
• Material: Copper
• Manufacturer: Genteq Evergreen
