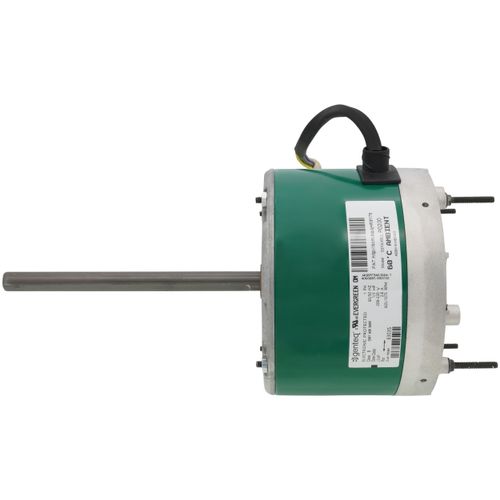

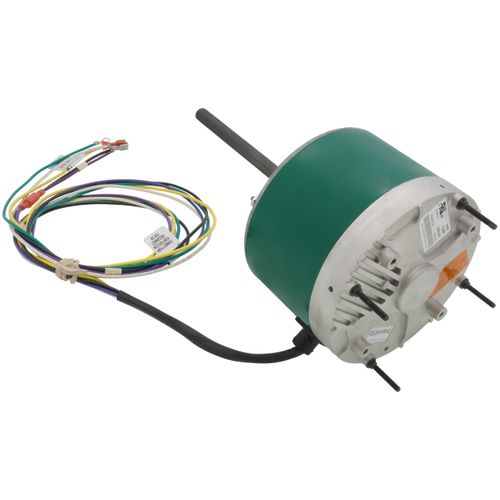

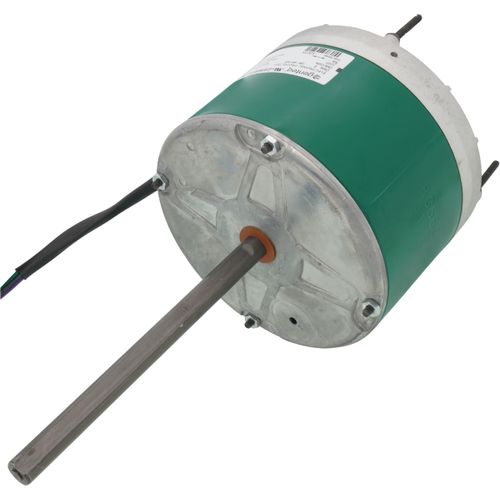

AMERICA 6303S Evergreen Om Condenser Fan Motor 1/3 HP Replacement 6301-GENTEQ 6303-GENTEQ FS1026S

Product Description

The AMERICA 6303S Evergreen Om Condenser Fan Motor is a 1/3 HP motor suitable for condenser fan applications. This motor features reversible rotation and operates at two speeds, providing options for different installation requirements. It has a totally enclosed design that protects it from environmental conditions and is compatible with both thru-bolt and belly band mounting methods.

• Reversible rotation for flexible application
• Totally enclosed design for protection against environmental factors
• Two-speed operation for efficiency

Product Highlights

The motor is perfect for HVAC systems where reliable fan operation is needed.

Product Information

Standard Information

• Brand: AMERICA
• MPN: 6303S

Technical Specifications

• Frame: 48
• Voltage: 208/230V
• Speeds: 2
• Horse Power: 1/3
• Approvals: UL
• Rotation: Counterclockwise/Clockwise
• Type: ECM
• Phase: 1
• Bearings: Ball
• Duty: Continuous Air Over
• Motor Orientation: Vertical Shaft Down
• Mounting: Extended Studs
• Insulation Class: B
• Enclosure Type: Totally Enclosed Air Over (TEAO)
• Speed: 825/1075 rpm
• Service Factor: 1
• Thermal Protection: Electronically Protected
• Ambient Temperature: 40 ¡C
• Frequency: 60 Hz
• Current: 2.8 A
• Number of Speeds: 2
• Electrical Type: Electronically Commutated Motor
• Poles: 10
• Drive End Bearing: Ball
• Opp Drive End Bearing: Ball
• Frame Material: Rolled Steel
• Shaft Type: Flat
• Overall Length: 10.98 in
• Frame Length: 2.82 in
• Shaft Diameter: 0.500 in
• Shaft Extension: 6.50 in
