Product Description

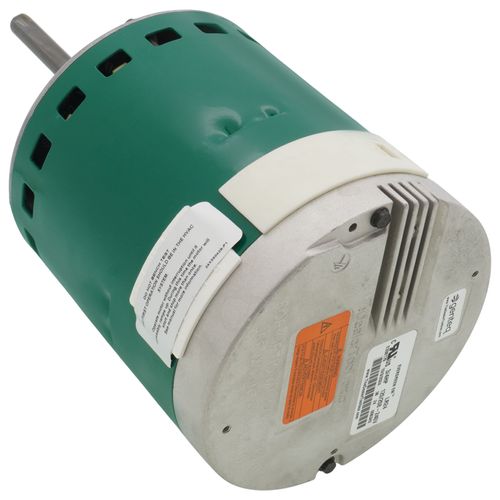

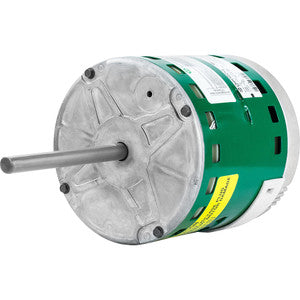

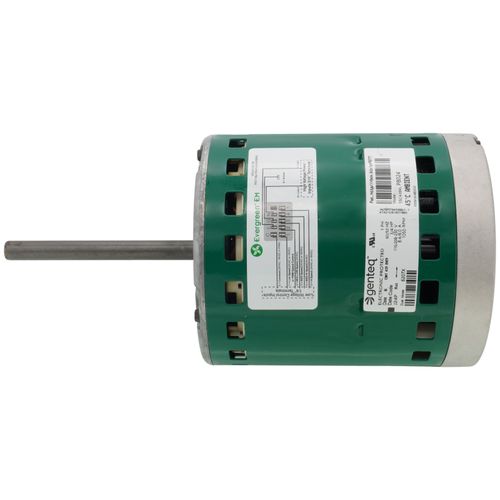

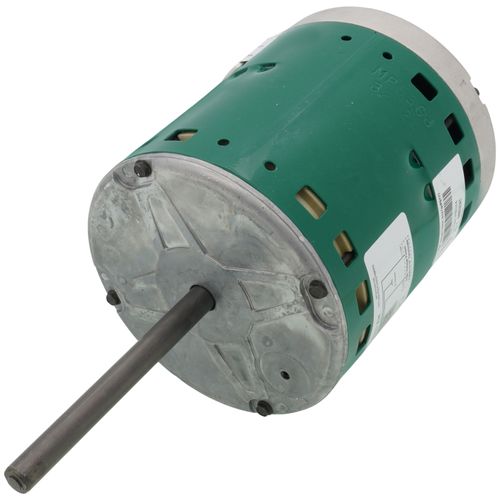

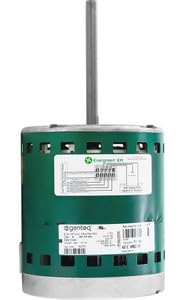

The America 6207X Evergreen EM is a dual voltage constant torque ECM replacement blower motor. This motor is pre-programmed and ready to install, featuring advanced rotation sensing technology. The motor has a diameter of five point six inches, fits a standard 48 frame, and includes electronic protection. With five constant torque settings controlled by twenty-four VAC inputs, it operates fully variable from six hundred to eleven hundred RPM.
- Dual voltage constant torque ECM replacement
- Electronically commutated and protected
- Variable speed functionality from 600 to 1100 RPM
Product Highlights
This Evergreen EM replacement blower motor offers easy installation and precise variable speed control, making it suitable for multiple HVAC applications.
Product Information
Standard Information
-
Brand: America
-
Motor Type: ECM
Technical Specifications
-
Frame: 48
-
Amperage: 8.4
-
Poles: 10
-
Bearings: Ball
-
Motor Orientation: Horizontal
-
Duty: Continuous Air Over
-
Insulation Class: B
-
Mount: Round
-
Phase: 1
-
Enclosure Type: Open Air Over
-
Speeds: 1
-
Horse Power: 3/4
-
Voltage: 115/208/230V
-
RPM: 1050
-
Output HP: 3/4 HP
-
Output KW: 0.56 kW
-
Service Factor: 1
-
Thermal Protection: Thermally Protected
-
Ambient Temperature: 40 °C
-
Frequency: 60/50 Hz
-
Drive End Bearing: Ball
-
Opp Drive End Bearing: Ball
-
Frame Material: Rolled Steel
-
Shaft Type: Flat
-
Overall Length: 11.41 inches
-
Frame Length: 5.32 inches
-
Shaft Diameter: 0.500 inches
-
Shaft Extension: 4.92 inches
-
Packaged Length: 15.70 inches
-
Packaged Width: 6.70 inches
-
Packaged Height: 7.10 inches
