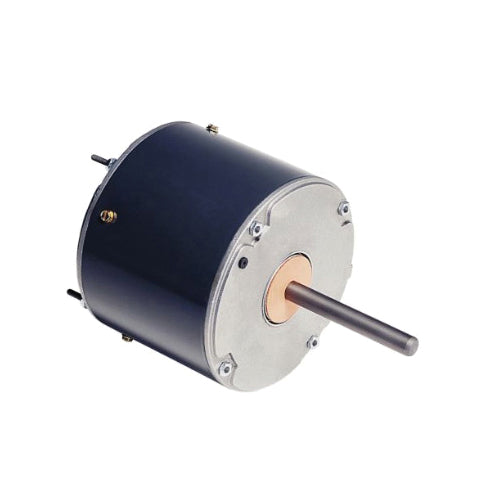

Allied Air 92W51 Permanent Split Capacitor Condenser Fan Motor 1/6 hp 208 to 230 V

Product Description

The Allied Air 92W51 is a permanent split capacitor condenser fan motor that operates at one-sixth horsepower. This motor is rated for voltages between two hundred eight to two hundred thirty volts and runs at sixty hertz. It features a frame size of forty-eight and spins at eight hundred twenty-five revolutions per minute (rpm).

• Operating Voltage: 208 to 230 V
• Speed: 825 rpm
• Horsepower: 1/6 hp

Product Highlights

The motor is designed for reliable operation in HVAC systems. Its permanent split capacitor design ensures efficient performance, making it suitable for residential and commercial applications.

Product Information

Standard Information

• Brand: Allied Air
• Part Number: L2764

Technical Specifications

• Amperage Rating: 1 A
• Bearing Type: Ball
• Dimensions: 5.63 in Diameter x 6.81 in Height
• Frequency Rating: 60 Hz
• Insulation Class: Class B
• Package Dimensions: 9.125 in Height x 12.5 in Length x 10.5 in Width
• Package Volume: 1197.5 cu-in
• Phase: 1 ph
• Rotation: CCWLE
• Shaft Size: 2.91 in Length
• Type: Permanent Split Capacitor
