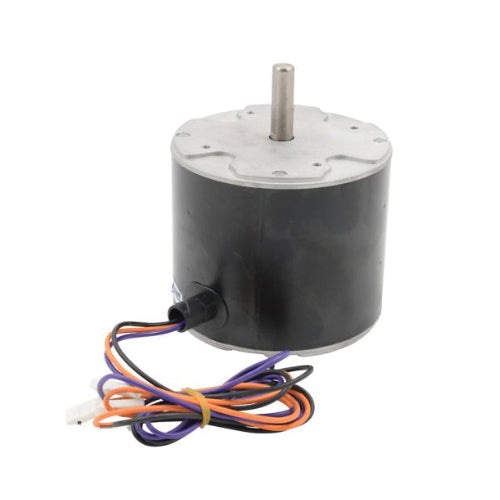

Allied Air 12F49 Permanent Split Capacitor Condenser Fan Motor 1/10 hp 208 to 230 V 60 Hz 1 ph

Product Description

The Allied Air 12F49 is a permanent split capacitor condenser fan motor designed for efficient operation in various cooling systems. This motor features a horsepower rating of one-tenth and operates on a voltage range between two hundred eight to two hundred thirty volts. With a robust construction and a speed of one thousand seventy-five revolutions per minute, it ensures reliable performance in HVAC applications.

• Power: 1/10 hp
• Voltage Range: 208 to 230 V
• Speed: 1075 rpm

Product Highlights

This motor is suitable for air conditioning systems where it efficiently blows air over the condenser coils. It operates with minimal noise and is built to last, ensuring reduced downtime for maintenance.

Product Information

Standard Information

• Brand: Allied Air
• Part Number: L2923

Technical Specifications

• Amperage Rating: 0.7 A
• Bearing Type: Ball
• Country of Origin: CN
• Dimensions: 4.84 inches Diameter x 5.82 inches Height
• Frame: 42
• Frequency Rating: 60 Hz
• Insulation Class: Class B
• Number of Speeds: 1
• Package Height: 9.125 inches
• Package Length: 12.5 inches
• Package Volume: 1197.5 cu-in
• Package Width: 10.5 inches
• Phase: 1 ph
• Rotation: CCWLE
• Shaft Size: 1/2 inches Diameter x 1-1/2 inches Length
• Type: Permanent Split Capacitor
