Product Description

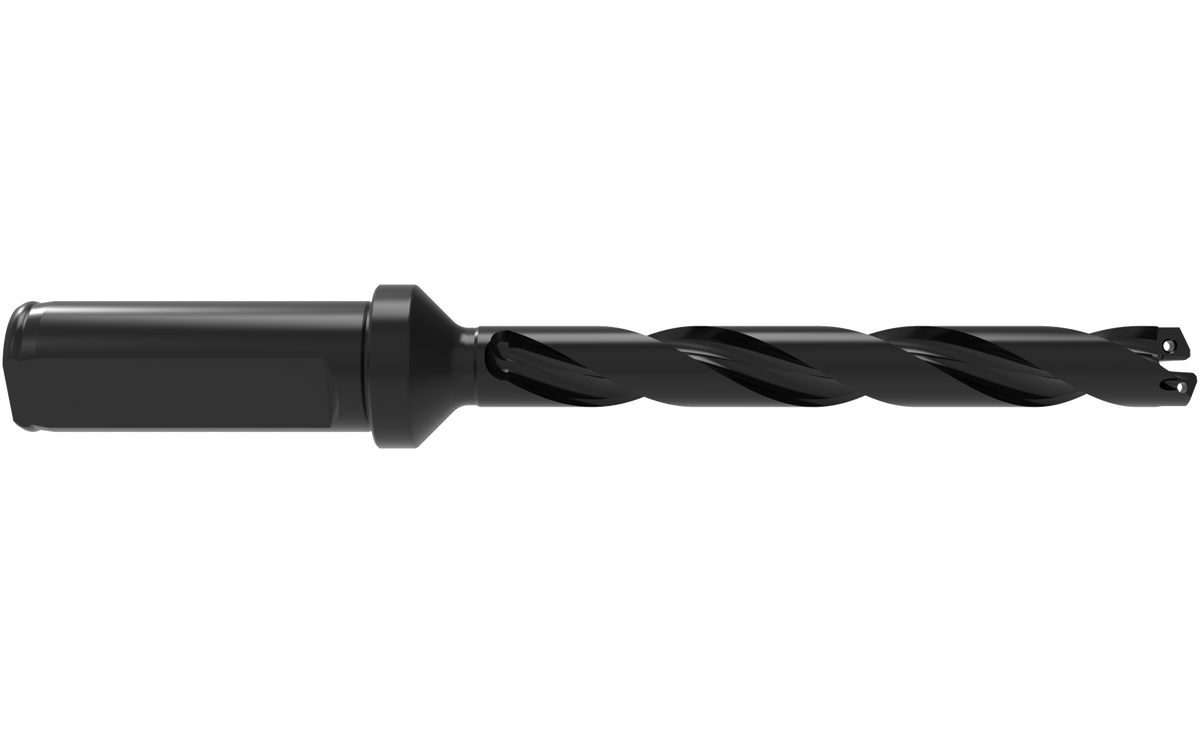

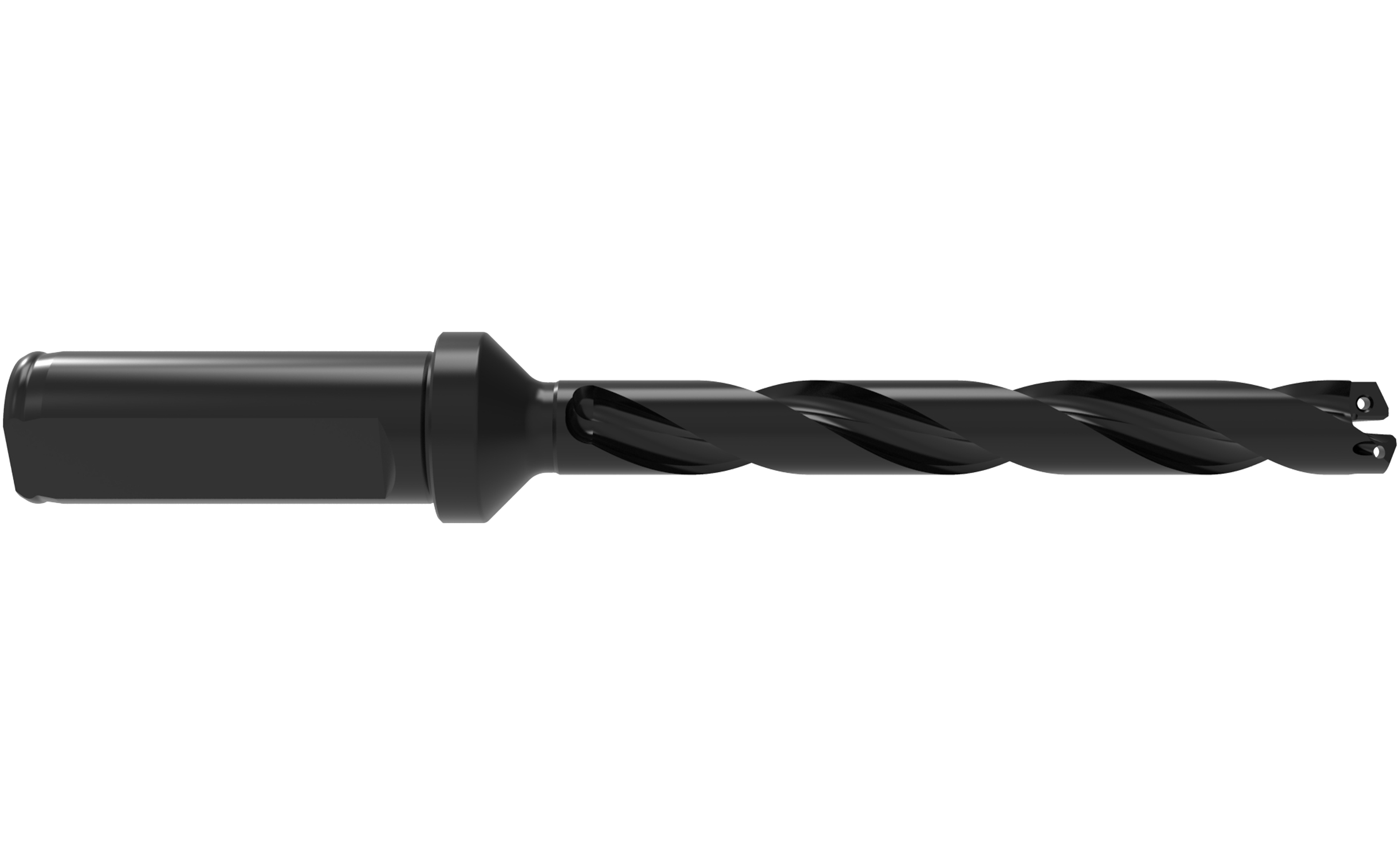

The Allied 60714H-075F is a Gen3sys #14 Helical Flute 7XD Holder with Flats. It is designed for precision drilling within a diameter range of zero point five five one two to zero point five nine zero five inches. This tool is suitable for applications requiring accurate hole dimensions.
- Drilling depth of four point one four zero six inches.
- Shank diameter of zero point seven five zero zero inches.
- Overall length of seven point two five zero zero inches.
Product Highlights
This holder is ideal for use with indexable and replaceable head drills.
Product Information
Standard Information
Technical Specifications
-
Drilling Diameter Range: zero point five five one two to zero point five nine zero five inches (14.000 to 14.990 mm)
-
Drilling Depth: four point one four zero six inches (four and nine sixty-fourths inches)
-
Shank Diameter: zero point seven five zero zero inches (three-fourths inch, 19.050 mm)
-
Shank Length: two point zero three one three inches (two and one thirty-second inches)
-
Pocket Size: 14
-
Overall Length: seven point two five zero zero inches (seven and one-fourth inches)
