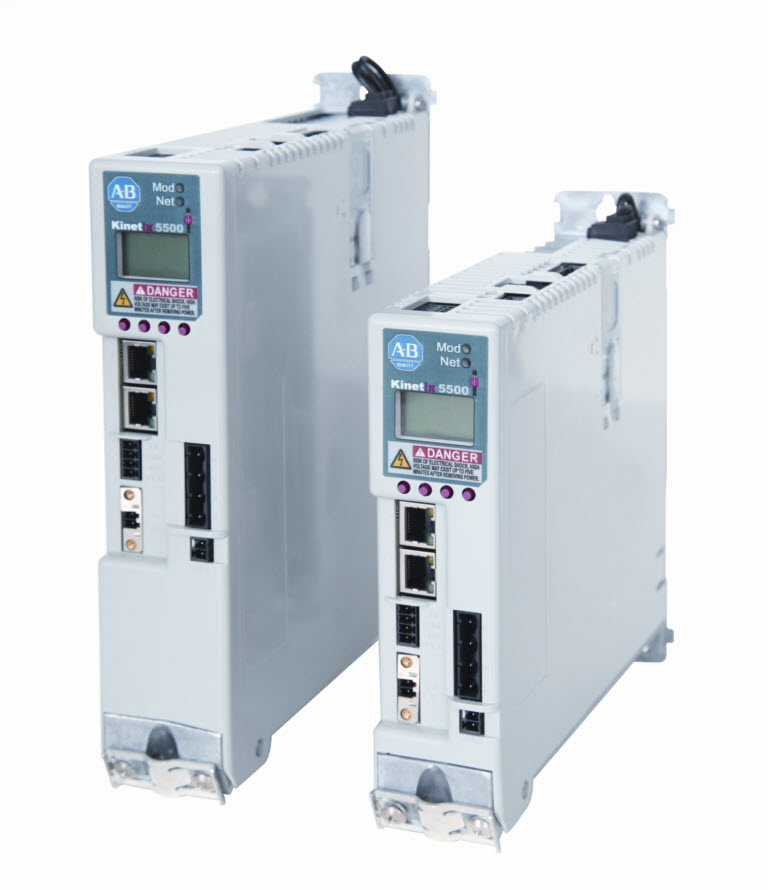

Allen-Bradley 2198-H070-ERS 190 to 528 VAC 3-Phase 57.3 Amp IP Servo Drive

Product Description

Allen-Bradley 2198-H070-ERS is a 3-phase servo drive that operates within a voltage range of one hundred ninety to five hundred twenty-eight VAC. This model supports a maximum output current of fifty-seven point five amps, making it suitable for various automation tasks.

• Safe Torque-off certified at ISO 13849-1 PLd/SIL 2
• Compatible with both servo and induction motors
• Provides dual-port Ethernet connectivity

Product Highlights

This servo drive features innovative technology for efficient motor control and superior performance in industrial applications.

Product Information

Standard Information

• Type: Servo Drive
• Sub Brand: Kinetix

Technical Specifications

• Input Voltage: 195 - 528 VAC
• Input Current: 23.7 A Main AC, 71.1 A Peak AC
• Power Rating: 7 kW at 195 - 264 V, 14.6 kW at 324 - 528 V
• Output Current: 57.5 A
• Temperature Rating: 0 - 50 degrees C
• Environmental Conditions: 5 - 95% Non Condensing Humidity
• Control Type: EtherNet/IP
• Applications: Automated Assembly, Automated Inspection, Food and Beverage, Material Handling, Packaging, Pharmaceutical and Printing
