Acuity Brands CM9 Sensorswitch Low Voltage Ceiling Mount Occupancy Sensor 12 to 24 VAC/VDC

Product Description

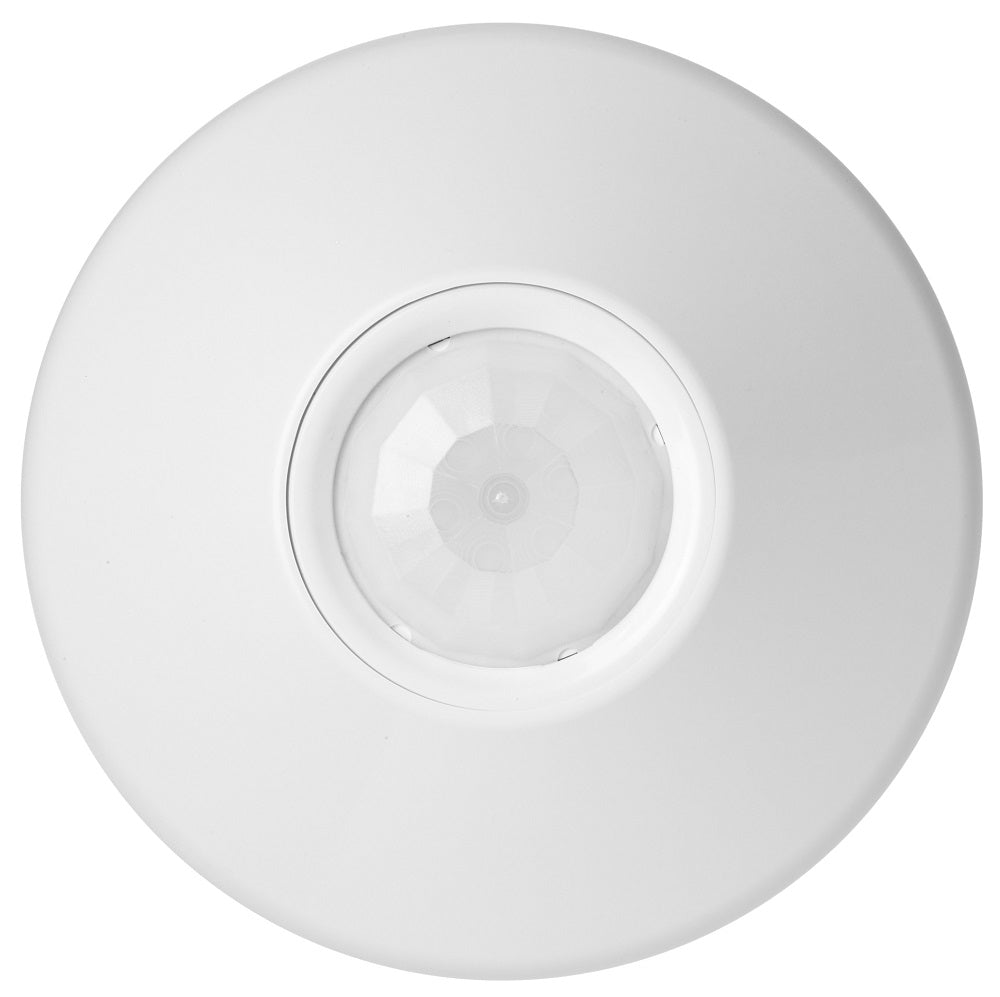

The Acuity Brands CM9 is a low voltage ceiling mount occupancy sensor. It operates at twelve to twenty-four volts alternating or direct current. This model utilizes passive infrared technology to detect motion and features a coverage area of twelve feet with a 360-degree viewing angle.

• Passive infrared sensor with wired connection.
• Time delay adjustable from thirty seconds to thirty minutes.
• Compact dimensions of four point five five inches in diameter and one point five five inches deep.

Product Highlights

This sensor is suitable for various indoor environments, providing reliable detection and energy efficiency.

Product Information

Standard Information

• Manufacturer: Acuity Brands
• Model: CM9

Technical Specifications

• Voltage Rating: 12 to 24 VAC/VDC
• Amperage Rating: 4 mA
• Connection Type: Wired
• Coverage: 12 ft
• Dimensions: 4.55 in Dia x 1.55 in D
• Material: Plastic
• Mounting Type: Ceiling
• Response Frequency: 902 MHz
• Sensor Type: Passive Infrared
• Temperature Rating: 14 to 160 deg F
• Time Delay: 30 s to 30 min
• Viewing Angle: 360 deg
• Standards/Approvals: cULus Listed
