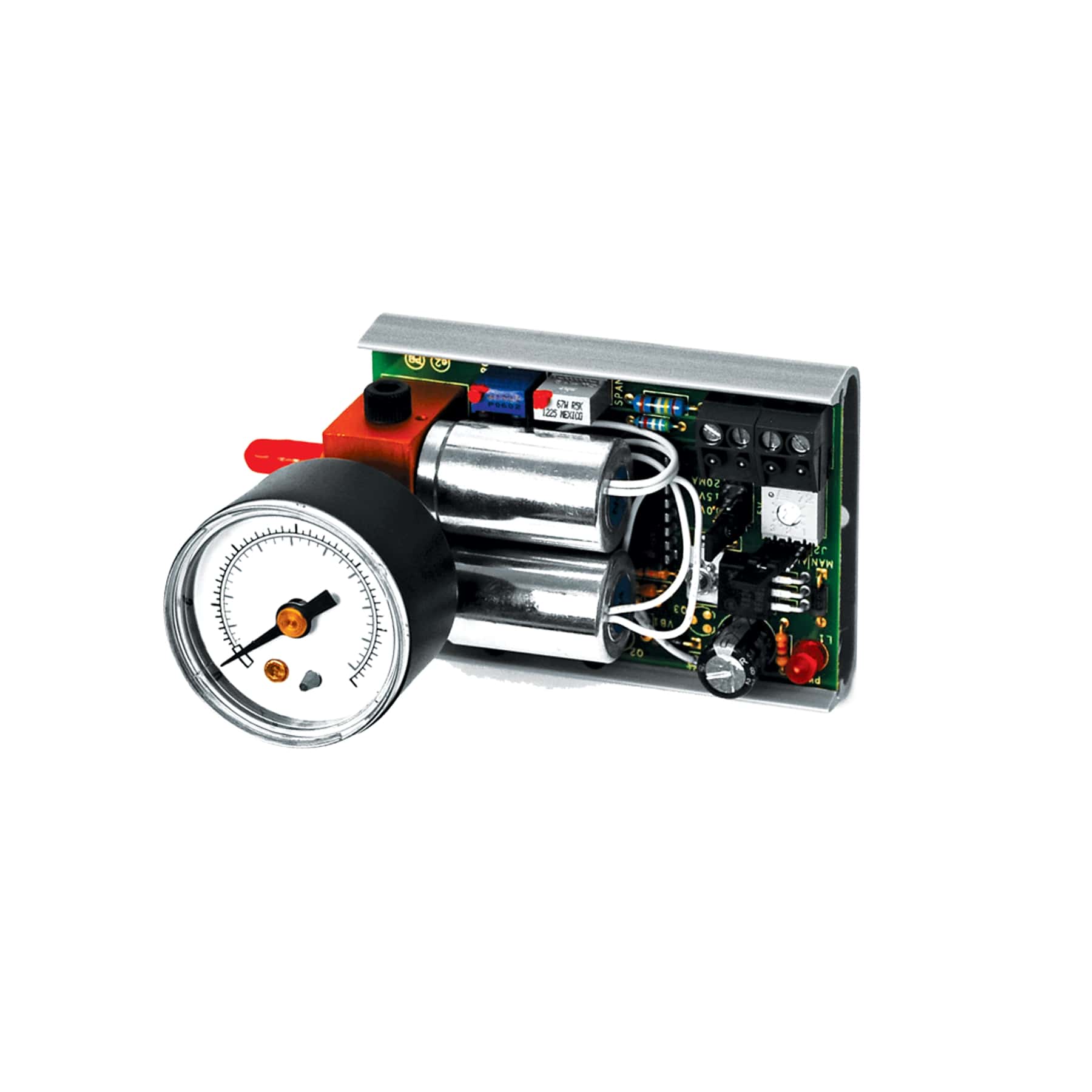

ACI PXP2.3G Analog Input to Pressure Output Interface Module

Product Description

The ACI PXP2.3G is an electric to pneumatic transducer designed to convert an analog electrical input signal into a proportional pneumatic output. This model automatically adjusts its control valves to maintain branch line pressure based on the input signal. The PXP2.3G features four selectable input ranges and a modulating output of zero to fifteen psig. A feedback signal of zero to five VDC is provided, indicating the branch line pressure, with zero volts equating to zero psig and five volts equating to fifteen psig.

• Input ranges provide flexibility for various applications.
• Robust design with two valves ensures no air consumption at set point.
• Manual override features facilitate setup and troubleshooting.

Product Highlights

This product is suitable for applications requiring precise control in pneumatic systems. Its design allows for constant branch line pressure under most conditions.

Product Information

Standard Information

• Brand: ACI
• Item Number: PXP2.3G

Technical Specifications

• Interface: Analog Input to Pressure Output
• Modulating Output: 0 to 15 psig
• Feedback Signal: 0-5 VDC
• Operating Range: 14 to 73 scim
• Fluid Consumption: Air
