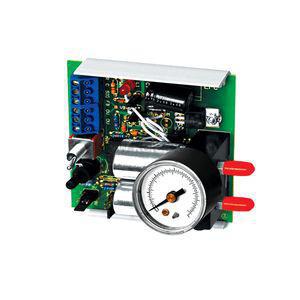

ACI EPC2GFS Analog Input to Pressure Output Interface Module

Product Description

The ACI EPC2GFS is an analog input to pressure output interface module. It converts an analog input signal into a proportional pneumatic output. The module adjusts control valves to maintain branch line pressure set by the input signal. It provides selectable input ranges of zero to five, zero to ten, zero to fifteen volts direct current, and zero to twenty milliamps.

• Four selectable input ranges
• Adjustable output pressure
• 0-5 VDC feedback signal

Product Highlights

This module is designed with electrical connections on one side and pneumatic connections on the other, ensuring easy installation. The EPC delivers constant bleed functionality with a branch exhaust response time tied to the bleed orifice size and pressure differentials.

Product Information

Standard Information

• Brand: ACI
• Item Number: EPC2GFS

Technical Specifications

• Interface: Analog Input to Pressure Output
• Input Ranges: 0-5 VDC, 0-10 VDC, 0-15 VDC, 0-20 mA
• Output Pressure Ranges: Jumper shunt selectable for 0-10 psig, 0-15 psig, 0-20 psig
• Feedback Signal: 0-5 VDC indicating resultant branch line pressure
• Power Failure Operation: Continues to bleed through orifice until branch pressure is zero psig
