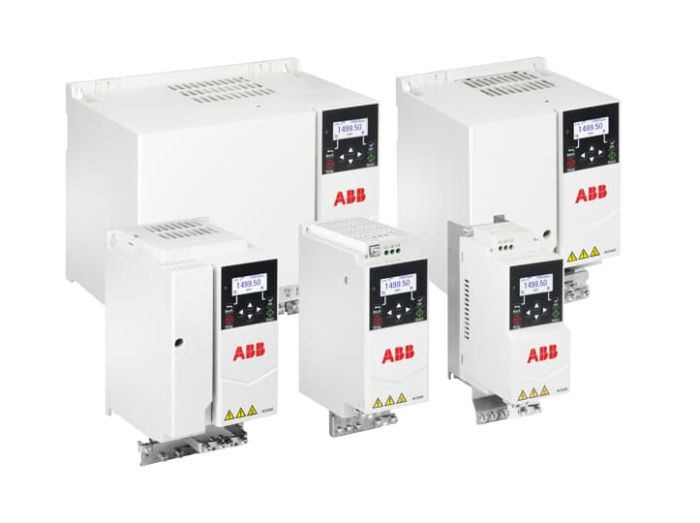

ABB ACS180-04S-25A0-4 AC Drive

Product Description

The ABB ACS180-04S-25A0-4 is an AC drive designed for controlling the speed and torque of three-phase motors. This unit accepts an input voltage range of three hundred eighty to four hundred eighty VAC and is suitable for both constant and variable torque applications.

• Integrated keypad for operator control
• Modbus RTU communication capability
• IP20 protection rated for surface, wall, or DIN rail mounting

Product Highlights

This AC drive enhances motor control in various applications, including machinery drives. Designed with features like Safe Torque Off (STO), Flystart, and Slip compensation, it supports efficient operations.

Product Information

Standard Information

• Brand: ABB
• Model: ACS180-04S-25A0-4

Technical Specifications

• Rated Input Voltage: 380 VAC to 480 VAC (3-phase)
• Rated Current: 25 A (nominal; 400 VAC)
• Rated Power: 11 kW (nominal; 400 VAC) / 15 HP (nominal; 400 VAC)
• Operating Temperature: -10 °C to +40 °C
• Enclosure Rating: IP20
• Dimensions: Height 8.98 inches, Width 6.69 inches, Depth 6.85 inches
• Ambient Temperature for Storage: -40 °C to +70 °C
• Communication Protocol: Modbus RTU
