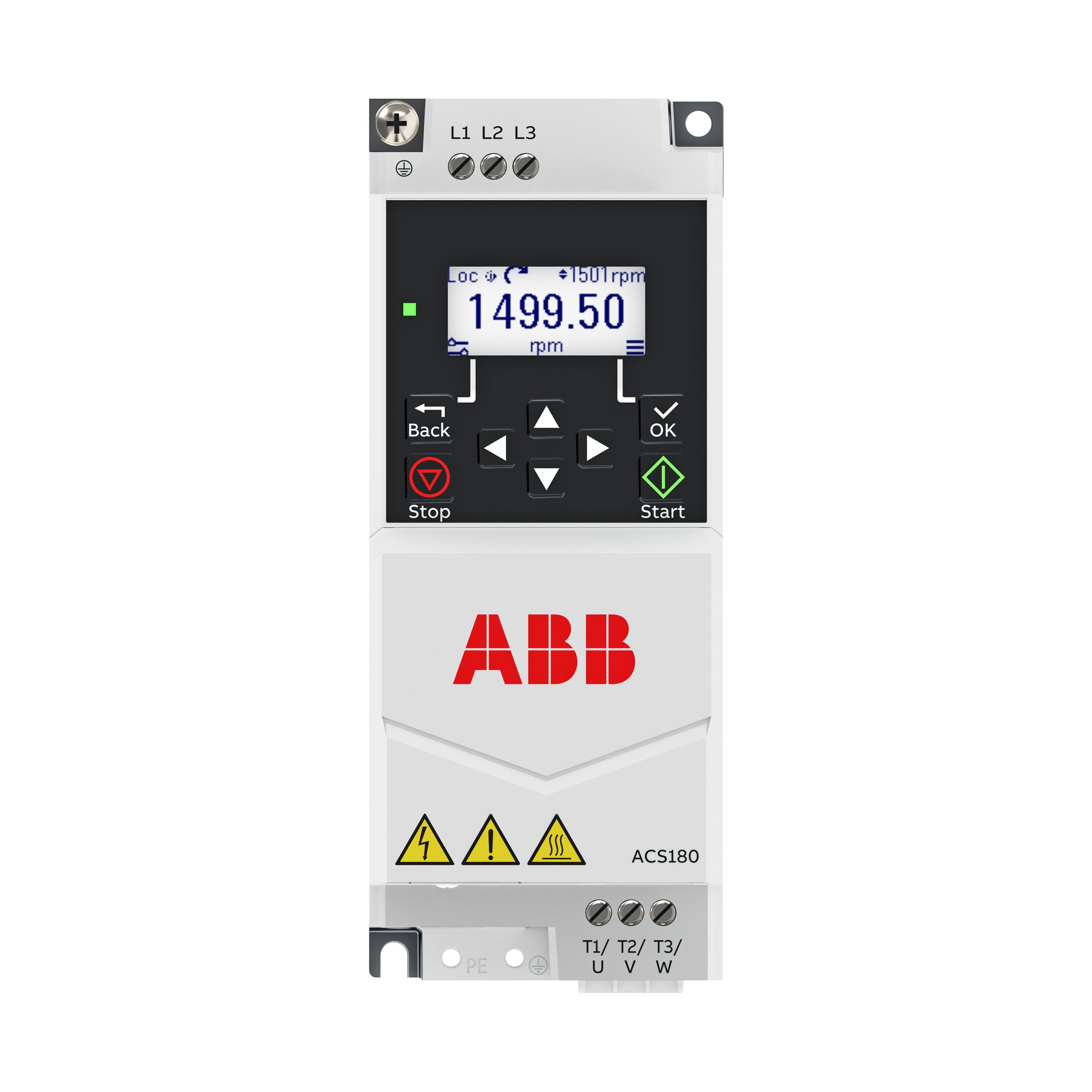

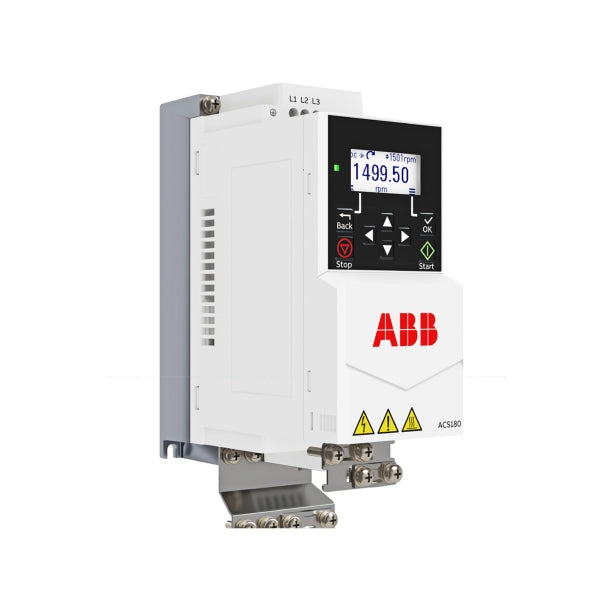

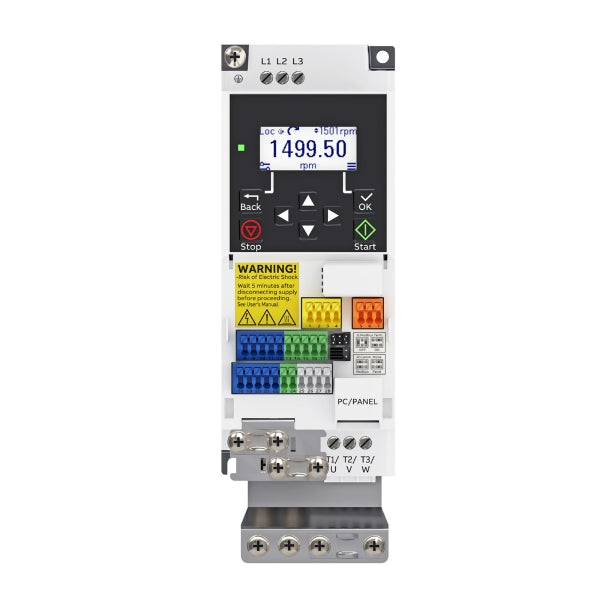

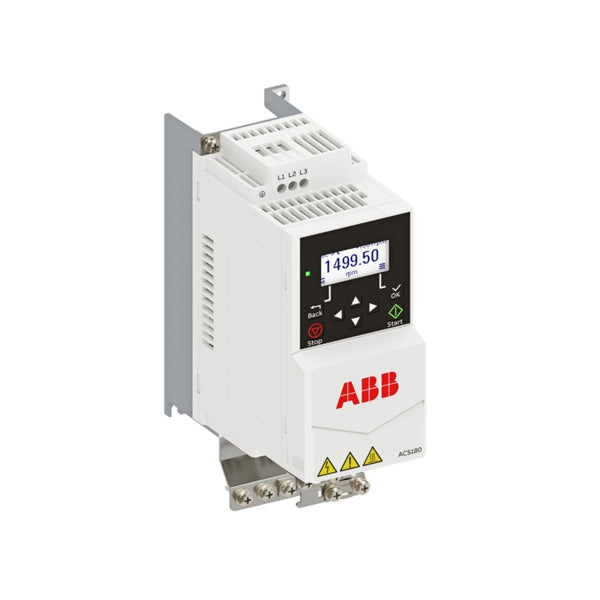

ABB ACS180-04S-25A0-2 AC Drive

Product Description

The ABB ACS180-04S-25A0-2 is an AC drive created for managing the speed of three-phase motors. It accepts input voltages from two hundred to two hundred forty VAC and delivers a three-phase output at two hundred forty VAC. This drive can perform both speed control and torque control. It has a built-in keypad and supports flux braking. The unit is designed for wall mounting and has an IP20 protection rating.

• Input Voltage: 200-240 VAC
• Output Voltage: 240 VAC, 3-Phase
• Enclosure: IP20

Product Highlights

Product Information

Standard Information

• Manufacturer: ABB
• MPN: ACS180-04S-25A0-2

Technical Specifications

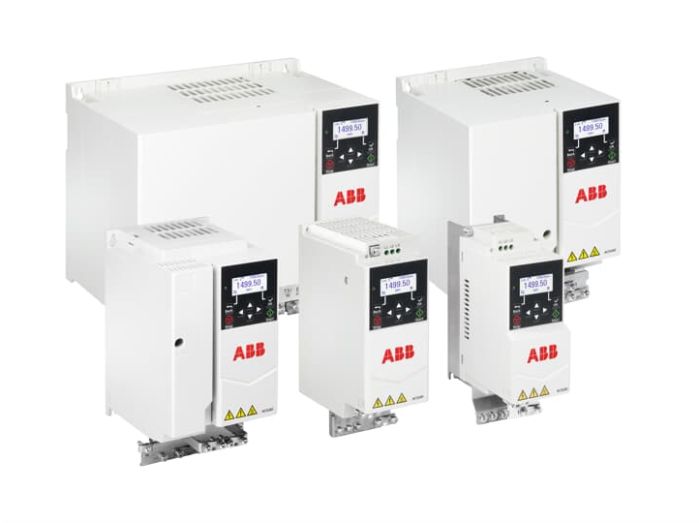

• Product Series: ACS180
• Horsepower: 7.5 HP
• Output Current: 25.0 Amps
• Input Phase: Three Phase Input
• Output Phase: Three Phase Output
• Brake: Flux Braking
• Enclosure Rating: IP20
• Mounting Type: Wall
• Frame Size: R3
• Height: 9 in
• Width: 9 in
• Depth: 10 in
• Weight: 10 lbs
• Operating Modes: Speed Control (V / Hz), Torque Control (Constant), Torque Control (Variable)
• Control Inputs: 4 Inputs (NPN)
• Integrated Keypad: Yes
