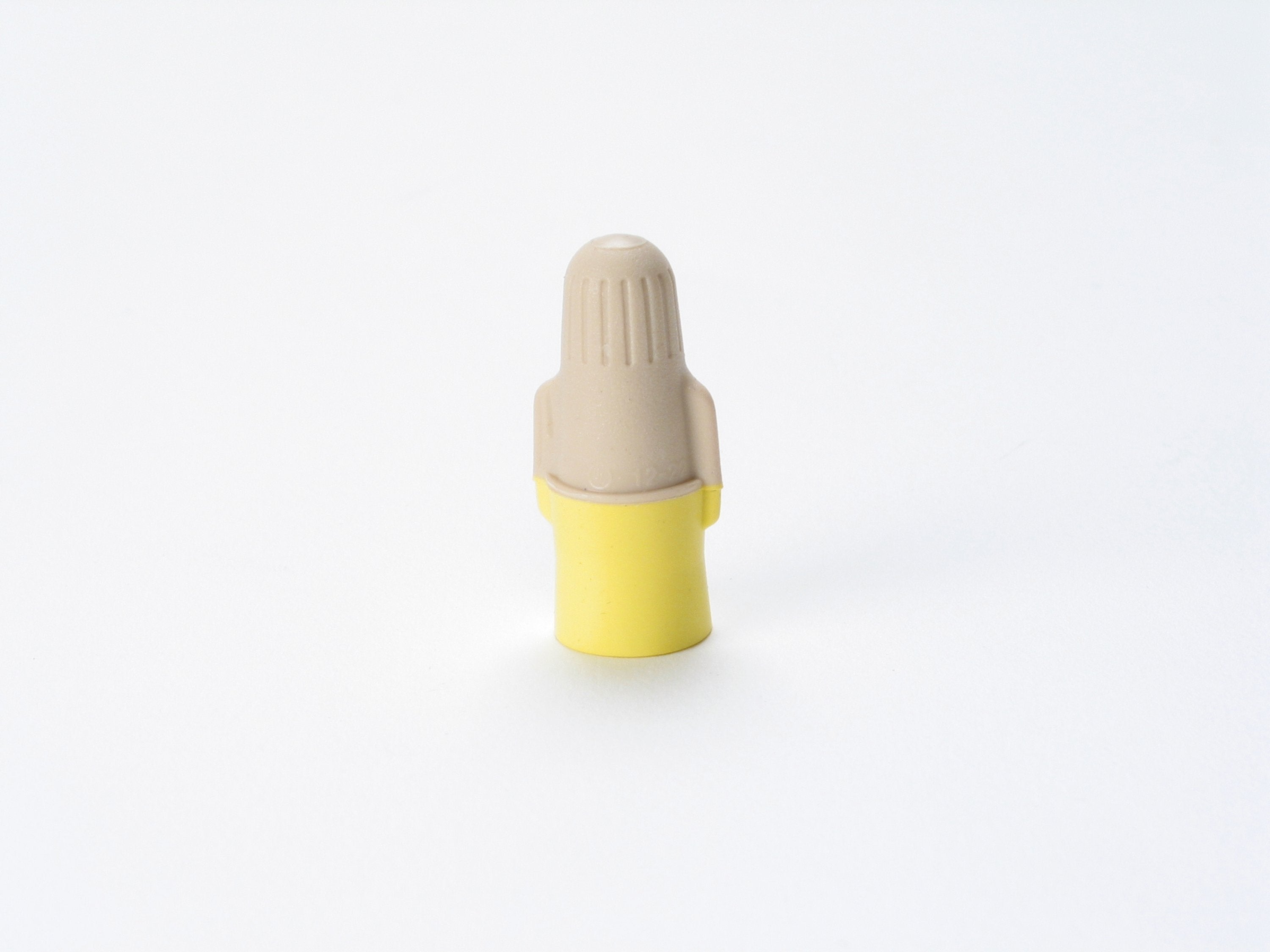

3M T/Y+POUCH Twist On Wire Connectors 600 VAC 22 to 12 AWG

Product Description

3M, MPN T/Y+POUCH, offers Twist On Wire Connectors suitable for aluminum and copper wire. These connectors can handle wire sizes from twenty-two to twelve AWG and are rated for six hundred VAC. The winged shell style features a flame-retardant design using spring steel to ensure durability and reliability.

• Strong bite for secure connections
• Wide wire range from twenty-two to twelve AWG
• Used for pigtail connections in electrical systems

Product Highlights

This wire connector simplifies the selection process for various wiring jobs.

Product Information

Standard Information

• Manufacturer: 3M
• Application: For electrically connecting two or more conductor ends in a pigtail application and insulate the connection

Technical Specifications

• Type: Flame-Retardant
• Color: Tan/Yellow
• Material: Spring Steel
• Shell Style: Winged
• Voltage Rating: 600 VAC
• Temperature Rating: 221 deg F
• Manufacturer Part Number: 7100127163
• Standards/Approvals: RoHS Compliant|C22.2 188 File No. M1983|UL 486C File No. M1983
