Product Description

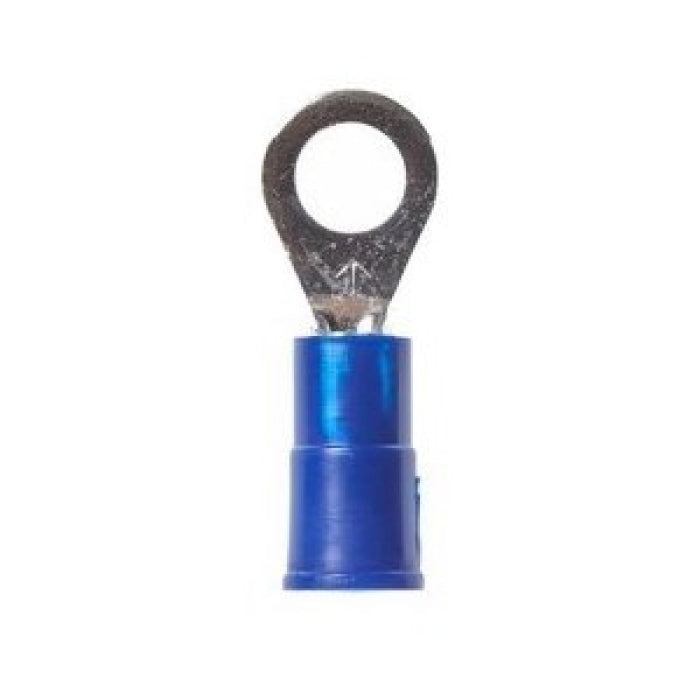

3M Highland RV14-10Q is an insulated standard ring terminal for wire sizes 16 to 14 AWG. This ring terminal has a butted seam barrel and a length of 0.9 inches. It is suitable for various applications including building fixtures and luminaires. It features a funnel design for easy wire insertion.
- Insulated for safety and protection
- Standard ring tongue type fits around a #10 stud
- Made from electrolytic copper for good conductivity
Product Highlights
The 3M Highland RV14-10Q provides reliable connections for electrical installations.
Product Information
Standard Information
Technical Specifications
-
Wire Size: 16 to 14 AWG
-
Stud Size: #10
-
Temperature Rating: -40 to 221 degrees F
-
Voltage Rating: 600/1000 VAC
-
Material: Vinyl Insulated Tin Plated Copper
-
Barrel Type: Butted Seam
-
Dimensions: 0.9 in Length, 0.33 in Width, 0.03 in Thickness
-
Insulation Diameter: 0.17 in
-
Clearance: 0.29 in
