Product Description

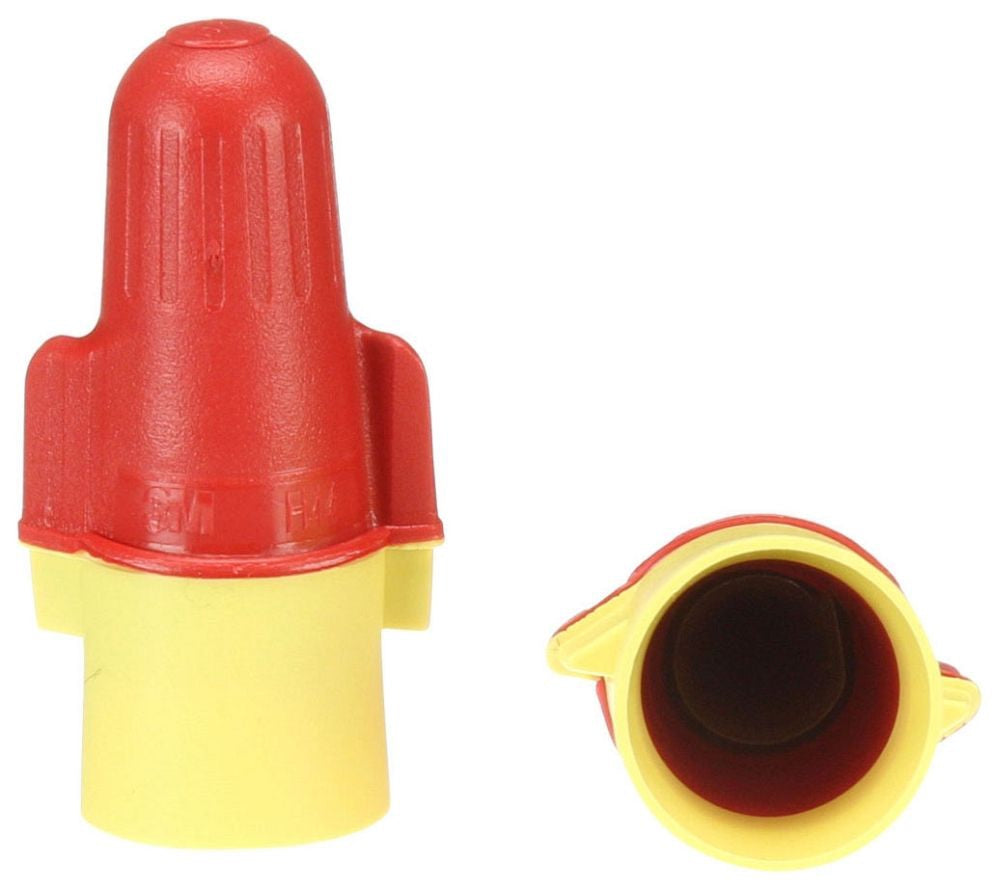

The 3M R/Y+POUCH is a flame retardant twist-on wire connector designed for electrical applications. This connector meets a range of needs for connecting conductors in various wiring jobs. It is suitable for use with both copper and aluminum wire ranging from twenty-two to eight AWG.
- Dual color-coded for easy identification
- Flexible spring allows for multiple wire connections
- Rated for 600 VAC and 221 degrees Fahrenheit
Product Highlights
The 3M R/Y+POUCH is engineered to replace conventional connectors, combining the capabilities of both red and yellow connectors. This design enables simplified inventory management and enhanced installation efficiency.
Product Information
Standard Information
-
Manufacturer: 3M
-
UPC: 05400743154
Technical Specifications
-
Application: For electrically connecting two or more conductor ends in a pigtail application and insulating the connection
-
Color: Red/Yellow
-
Material: Spring Steel with polypropylene and thermoplastic elastomer insulation
-
Series: Performance Plus R/Y+
-
Shell Style: Rounded Wing
-
Temperature Rating: 221 degrees Fahrenheit
-
Voltage Rating: 600 VAC
-
Standards/Approvals: CSA Certified, CE Certified, RoHS Compliant
