3M MVU10-55PX-A Butted Seam Barrel Pin Terminal 12 to 10 AWG Conductor 1/4 in Dia x 0.55 in L

Product Description

The 3M MVU10-55PX-A is a butted seam barrel pin terminal designed for conductors ranging from twelve to ten AWG. This terminal features a color-coded identification system for wire size and has a strong construction suited for reliable connections.

• Compatible with 12 to 10 AWG conductors.
• Electrical insulation rated for 600 to 1000 VAC.
• Constructed from copper with a robust vinyl insulation.

Product Highlights

This pin terminal simplifies wire connections with its funnel-designed sleeve, ensuring easy crimping and stress relief.

Product Information

Standard Information

• Brand: 3M
• MPN: MVU10-55PX-A

Technical Specifications

• Conductor Size: 12 to 10 AWG

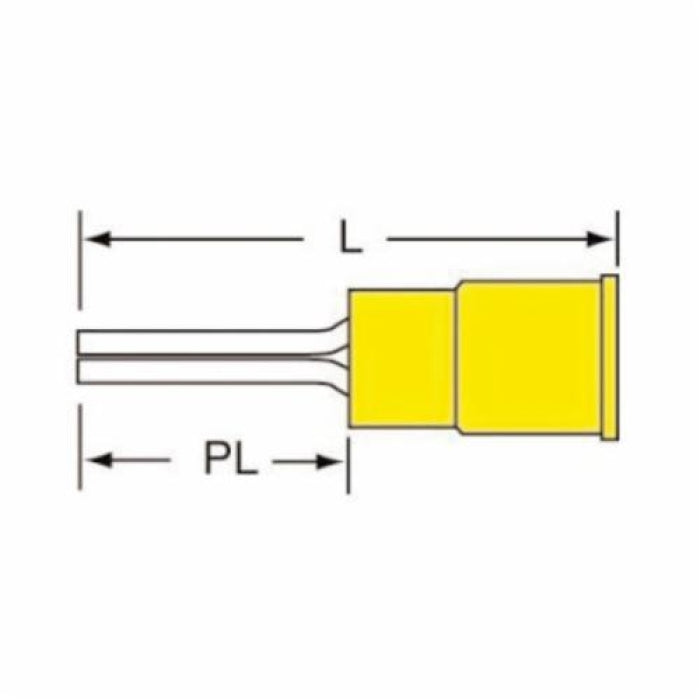

• Pin Diameter: 1/4 in
• Pin Length: 0.55 in
• Overall Length: 1.06 in
• Temperature Rating: 167 deg F
• Voltage Rating: 600 to 1000 VAC
• Material: Copper
• Color: Yellow
