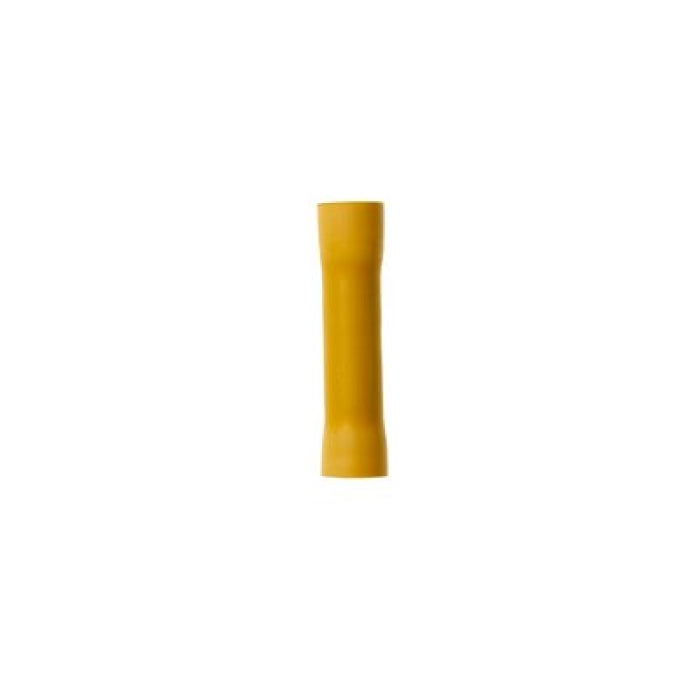

3M MV10BCX Color Coded Standard Butt Connector 12 to 10 AWG 1.2 in Length

Product Description

The 3M MV10BCX Color Coded Standard Butt Connector provides a secure and reliable connection for electrical applications. This connector accommodates wire sizes ranging from twelve to ten American Wire Gauge (AWG). It features a seamless vinyl-insulated barrel with a length of one point two inches, designed for easy insertion and crimping. The connector operates safely within a temperature range of negative forty to two hundred twenty-one degrees Fahrenheit.

• Seamless barrel for enhanced strength
• Compatible with stranded wire sizes 12 to 10 AWG
• Electrolytic copper construction for improved conductivity

Product Highlights

The 3M MV10BCX ensures safe and reliable performance with its high-quality materials and design.

Product Information

Standard Information

• Brand: 3M
• MPN: MV10BCX

Technical Specifications

• Material: Copper
• Insulation Material: Vinyl
• Overall Length: 1.2 inches
• Barrel ID: 0.142 inches
• Max Operating Temperature: 221 degrees F
• Connection Type: Butt
• Thickness: 0.038 inches
• Certification: UL Listed, CSA Certified
