3M 7695-T-150 Cold Shrink 3 Terms/Kit Non-Skirted Termination Kit

Product Description

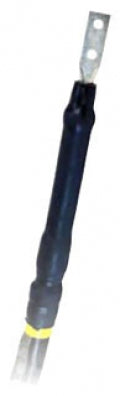

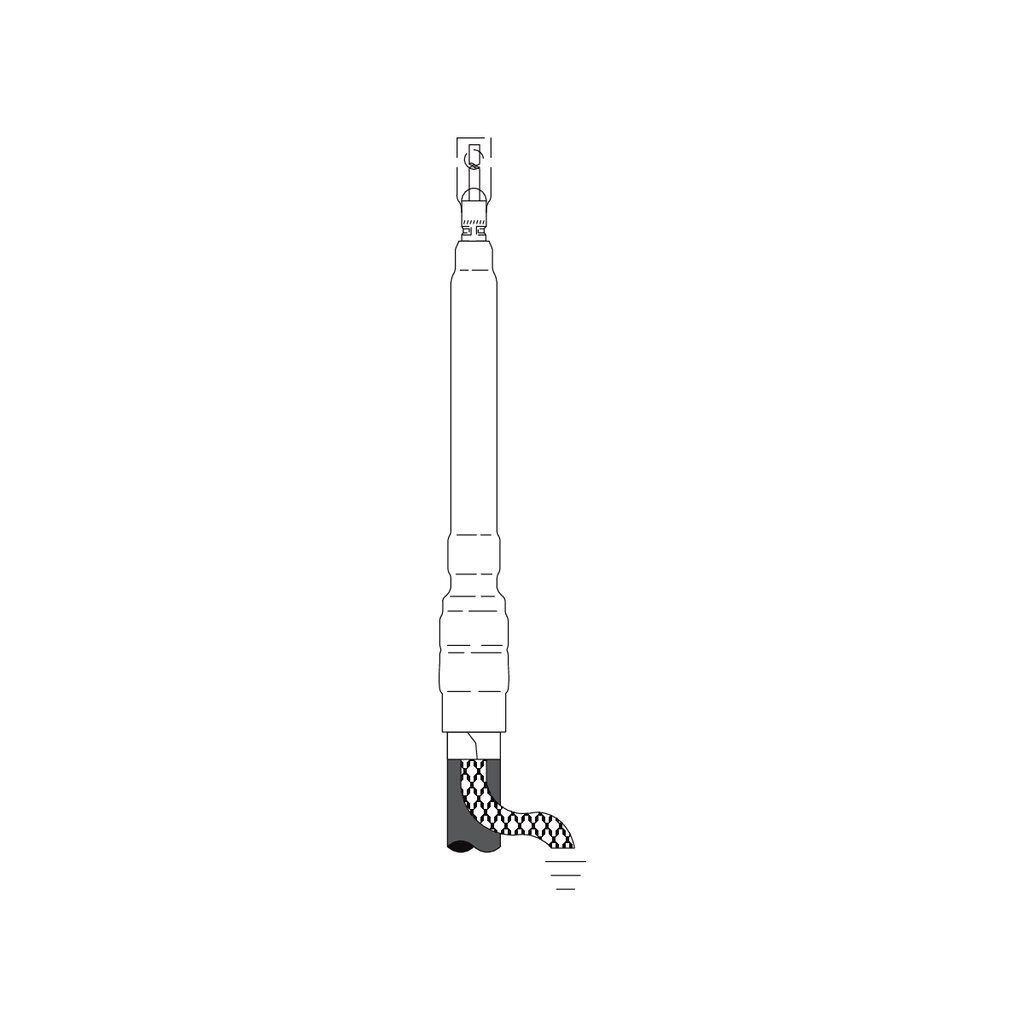

3M Cold Shrink Kit 7695-T-150 is designed for terminating indoor and outdoor medium voltage cables. It provides ease of installation and reliable performance. This kit includes three non-skirted, one-piece cold shrink terminations suitable for various conductor sizes.

• Suitable for indoor applications

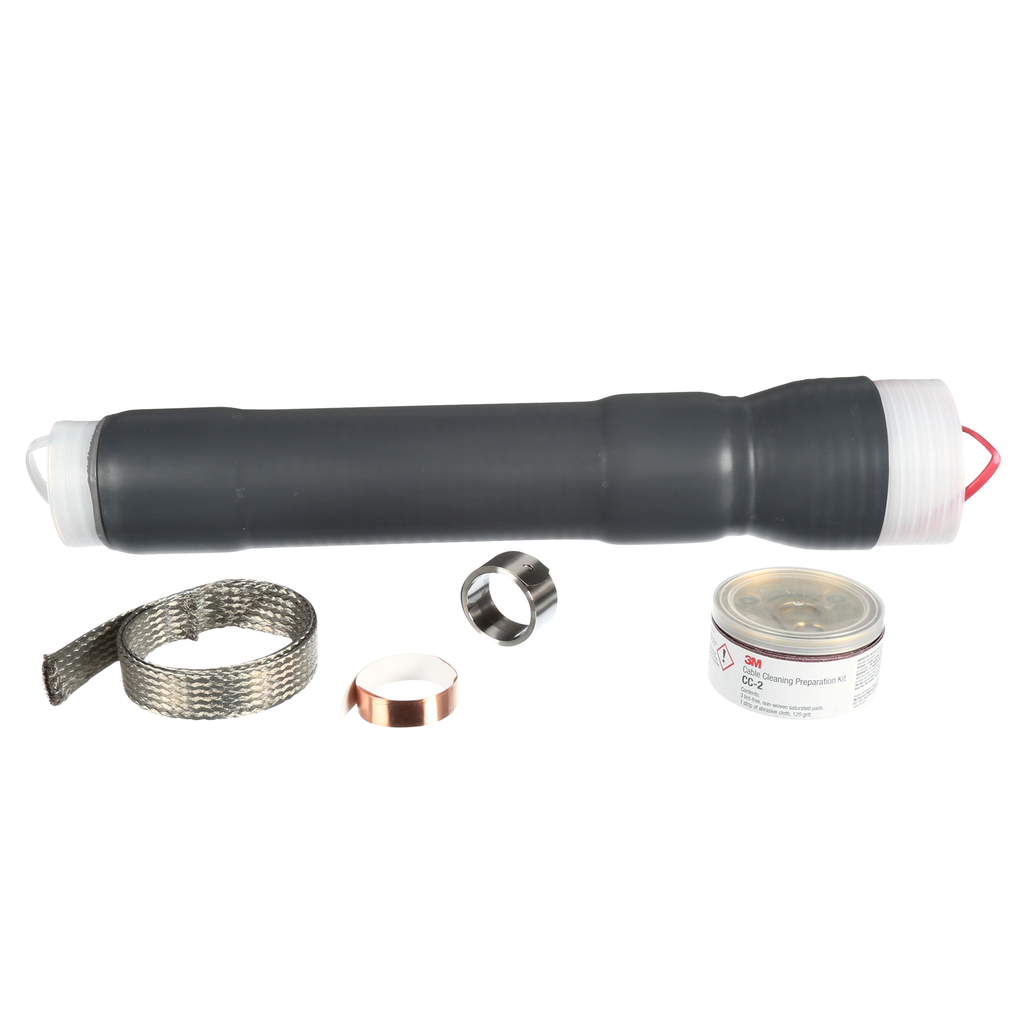

• Includes 3 non-skirted, 1-piece, 3-phase cold shrink terminations
• Provides a void-free seal to tape shield, wire shield, and UniShield power cables

Product Highlights

The 3M Cold Shrink QT-III Termination Kit effectively terminates various cable types, making it ideal for medium voltage applications.

Product Information

Standard Information

• Manufacturer: 3M Co.
• Catalog Number: 7695-T-150

Technical Specifications

• Voltage: 5 to 35 kV
• Cable Type: Tape Shield, UniShield, Wire Shield
• Conductor Size: 700 to 1500 kcmil (5 kV), 600 to 1250 kcmil (8 kV), 500 to 1000 kcmil (15 kV), 250 to 800 kcmil (25/28 kV), 3/0 AWG to 600 kcmil (35 kV)
• BIL Rating: 150 kV
• Insulation Material: Silicone Rubber
• Insulation Diameter: 1.05 to 1.8 inches
• Maximum Installed Length: 16 inches
