Product Description

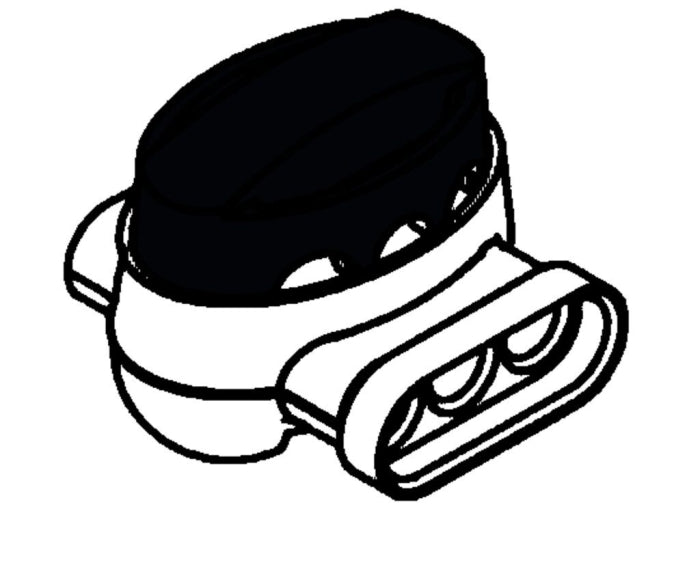

The 3M Scotchlok 316-IR-BAG is a self-stripping electrical insulation displacement connector. It connects solid or stranded copper conductors ranging from twenty-two to sixteen AWG. This product is suitable for low-energy electrical connections in various applications such as underground circuit wires, sprinkler systems, or landscape lighting. The connectors provide a moisture-resistant seal when used appropriately.
- Application for solid or stranded copper wires 22 to 16 AWG.
- Moisture-resistant design suitable for outdoor applications.
- UL Listed and RoHS compliant.
Product Highlights
This connector is manufactured from flame-retardant nylon and features a tin-plated brass U-contact for enhanced conductivity. It can withstand temperatures up to 221 degrees Fahrenheit and a maximum insulation diameter of 0.155 inches.
Product Information
Standard Information
-
Brand: 3M
-
MPN: 316-IR-BAG
Technical Specifications
-
Wire Size: 22 to 16 AWG Solid/Stranded
-

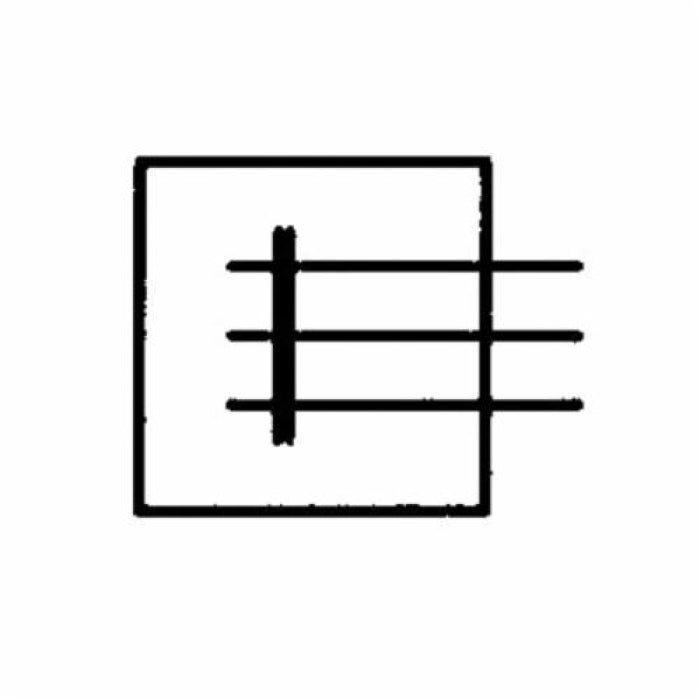

Connection Type: Pigtail
-
Voltage Rating: 600 VAC
-
Temperature Rating: 221 Deg F
-
Max Insulation: 0.155 inches
-
Approval: UL Listed
-
Material: Flame Retardant Nylon
