Product Description

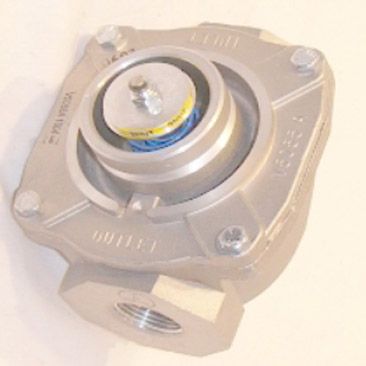

The Honeywell V5055D1008 is a 1-inch NPT high-pressure gas valve designed for use with V4055 series actuators. This valve provides on-off control of gas flow to commercial and industrial burners. It features a quick opening guide and is typically used in conjunction with models V4055, V4062, and V9055 for fluid power actuators. The valve ensures safety with a shut-off feature, making it suitable for gas flow applications in demanding environments.
- Designed for use with V4055 series actuators
- 1-inch NPT size
- On-off safety shut-off
Product Highlights
The Honeywell V5055D1008 gas valve is built for high-pressure applications. It uses a normally closed valve rated for final shutoff service. The valve includes 1/4-inch NPT upstream and downstream taps and plugs, ensuring secure installation and operation.
Product Information
Standard Information
-
Brand: Honeywell
-
Model: V5005D
Technical Specifications
-
MPN: V5055D1008
-
Valve Size: 1 inch
-
Valve Connection: NPT
-
Piping Configuration: Straight
-
Body Material: Brass
-
Valve Application: Gas
-
Max Pressure: 125 psi WOG
-
Weight: 5.00 lbs
