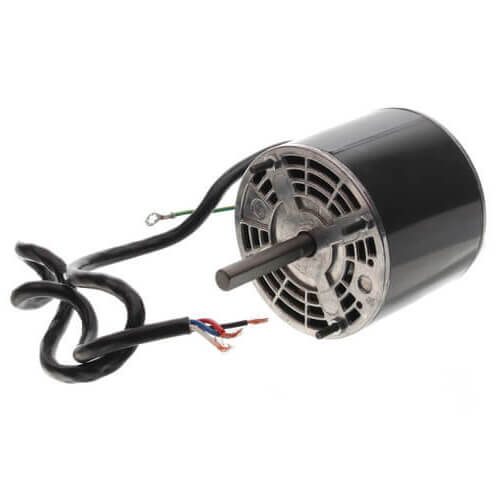

Fasco D119 Motor Fan/Blower 1/11-1/25-1/70 Horsepower 1500 Revolutions per Minute 115 Volt

Product Description

The Fasco D119 is a 4.4 Frame Open Ventilated Shaded Pole General Purpose Motor with a ball bearing. It is rated at 1/11, 1/25, and 1/70 horsepower, operates at 1500 RPM, and uses 115 volts and 60 Hz. This motor is suitable for a variety of applications including fan motors and blowers.

• 115V voltage
• 1500 RPM speed
• 1/11, 1/25, and 1/70 HP ratings

Product Highlights

This Fasco motor features a counterclockwise rotation and is designed with ball bearings for durability. It’s open ventilated design allows for better cooling, and it is thermally protected for safety during continuous operation.

Product Information

Standard Information

• Brand: Fasco
• Model Name: D119
• Manufacturer: Fasco Motors
• Category: Fan Motors
• Part Type: General Purpose Motor

Technical Specifications

• Weight: 6.9 pounds
• Voltage: 115 volts
• Speed: 1500 RPM
• Current: 2.9 amps
• Motor Enclosure: Open
• Insulation Class: B
• Bearing Type: Ball
• Motor HP: 1/11-1/25-1/70 HP
• Phase: Single
• Rotation: Counterclockwise
• Shaft Diameter: 0.5 inches
• Shaft Length: 2.625 inches
• Number of Speeds: 3
• Service Factor: 1.0
• Cycle/Hertz: 60 Hz
• Country of Origin: USA
