Product Description

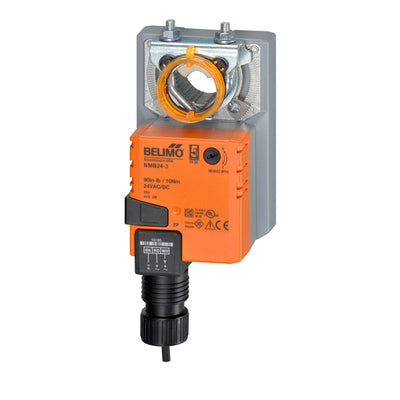

The Belimo NMB24-3 is a direct coupled actuator featuring a torque of ninety inch-pounds. This actuator operates using 24 volts alternating current direct current and supports on/off and floating point control for dampers in HVAC systems.
- Brushless DC motor for precise control.
- Anti-rotation strap to prevent lateral movement.
- Electronically protected against overload for increased durability.
Product Highlights
This actuator simplifies installation with a self-centering feature for jackshafts. It includes a clear position indicator for checking damper position.
Product Information
Standard Information
-
Brand: Belimo
-
MPN: NMB24-3
-
Power Supply: 24VAC / 24VDC
-
Torque: 90 in-lb (10 Nm)
Technical Specifications
-
Actuator Type: Non-Fail-Safe
-
Angle of Rotation: 95 degrees
-
Control Type: Floating / 3-point
-
Electrical Connection: Standard 3ft plenum rated cable
-
Power Consumption: 2W running, 0.2W holding
-
Operating Conditions: -22°F to 122°F (-30°C to 50°C)
-
Degree of Protection: IP54 / NEMA2
