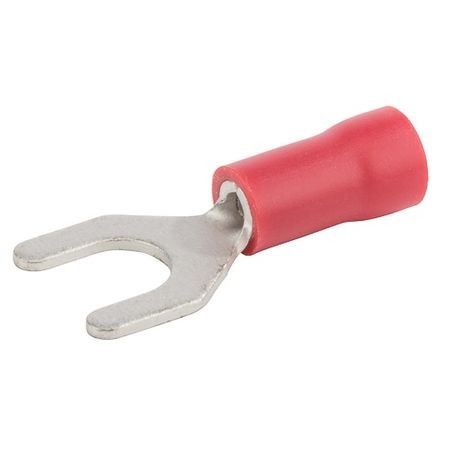

NSI S22-10V-S NSI Miniterms S Series Insulated Spade Terminal 22 to 18 AWG Conductor 0.826 in L

Product Description

The NSI Miniterms S22-10V-S is a reliable insulated spade terminal designed for use with twenty-two to eighteen AWG conductors. Constructed from copper, this terminal features a butted seam barrel for secure connections. The product measures zero point eight two six inches in length.

• Designed for free-standing studs and wire termination applications
• Open tongue end for rapid insertion on the mounting screw
• Durably built with electro-plated tin finish for improved conductivity

Product Highlights

This spade terminal is versatile for various wiring projects and supports efficient electrical connections.

Product Information

Standard Information

• Brand: NSI
• Manufacturer: NSi Industries

Technical Specifications

• Material: Copper
• Color: Red
• Type: Insulated
• Length: zero point eight two six inches
• Tongue Type: Spade
• Stud Size: #10
• Barrel Type: Butted Seam
• Voltage Rating: 300 VAC
• Temperature Rating: seventy-five degrees Celsius
• Conductor Size: twenty-two to eighteen AWG
• Order Interval: 25
• Minimum Order Quantity: 25
