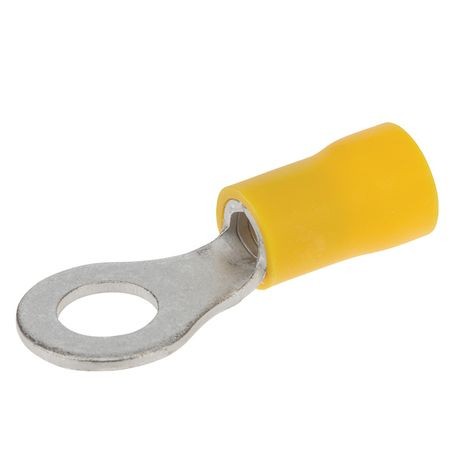

NSI R12-10V-S Miniterms R Series Standard Ring Terminal 12 to 10 AWG Conductor

Product Description

The NSI R12-10V-S Miniterms R Series Standard Ring Terminal is designed for use with conductors sized between twelve and ten AWG. This terminal is made from copper and has a brazed seam barrel, providing durability and optimal electrical connectivity.

• Basic tongue type ring terminal
• Safe and reliable connections
• Compatible with #10 stud size

Product Highlights

The ring terminal ensures secure connections, as it cannot be disconnected unless the screw is completely removed.

Product Information

Standard Information

• Brand: NSI
• Manufacturer: NSi Industries

Technical Specifications

• Conductor Size: 12 to 10 AWG
• Temperature Rating: 75 deg C
• Voltage Rating: 300 VAC
• Length: 1.003 in
• Material: Copper
• Color: Yellow
• Barrel Type: Brazed Seam
• Tongue Size: 0.374 in W
• Barrel Size: 0.1338 in ID x 0.2559 in OD x 0.4921 in L
• Finish: Electro-Plated Tin
• UPC: 662381060655
• UNSPSC: 39121432
• Minimum Order Qty: 10
