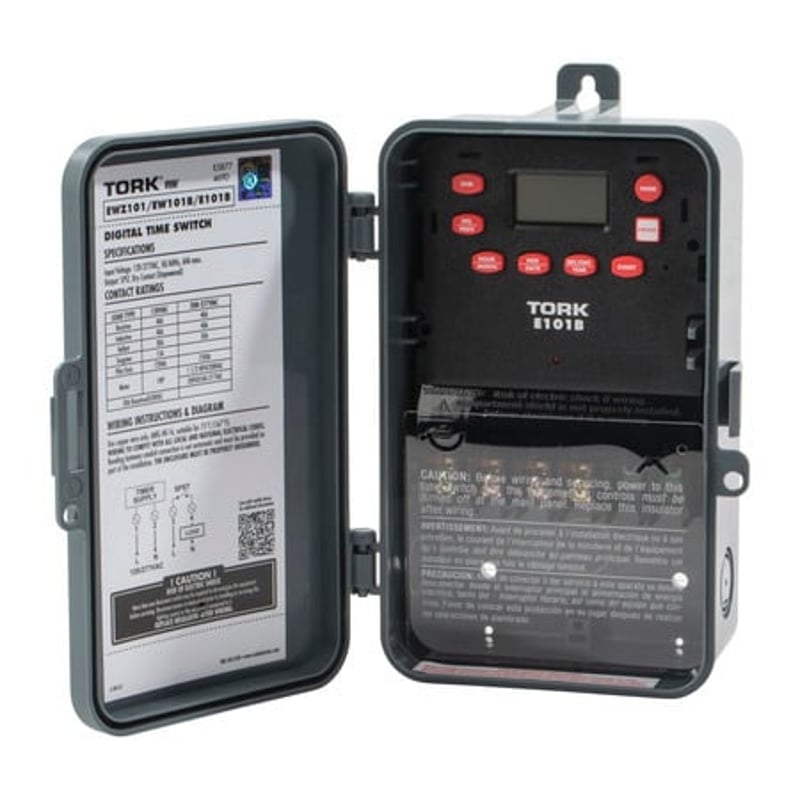

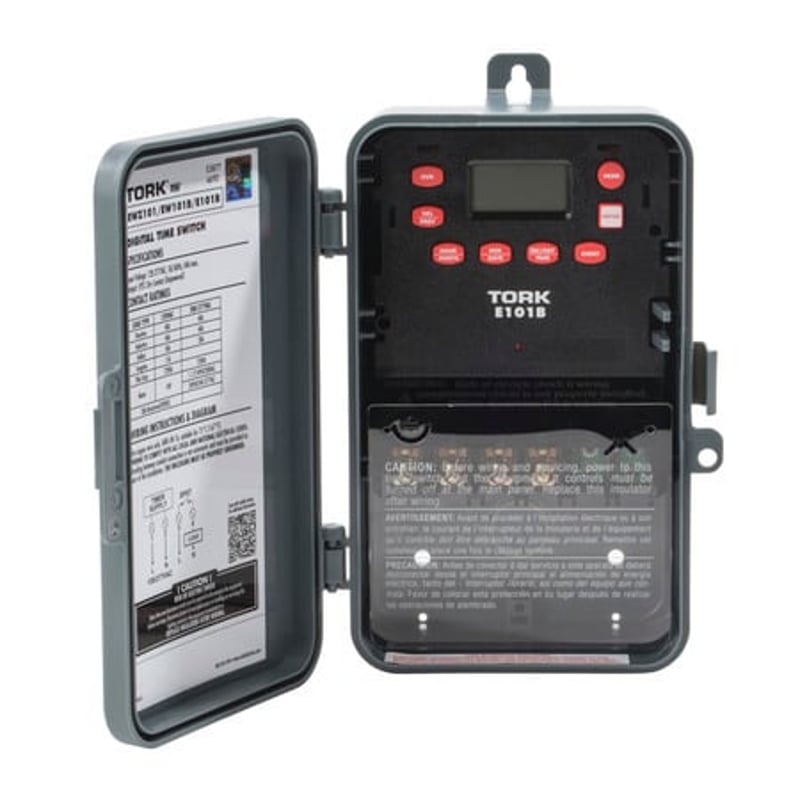

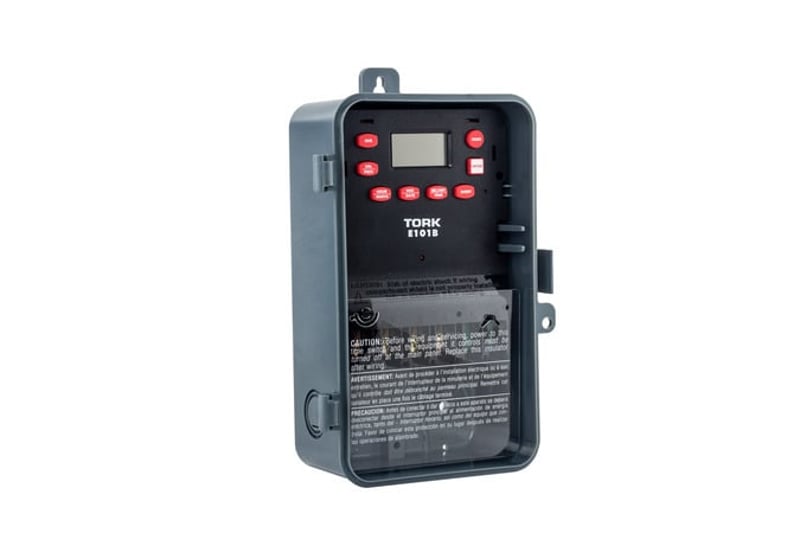

NSI E101B TORK 24 Hour Digital Timer 1 Pole 2 Hp

Product Description

The NSI Tork E101B Time Switch operates within a wide voltage range of 120 to 277 VAC and supports 1 to 2 horsepower motors. It features a simple to use programming interface with options for up to twenty on and off settings repeating daily. The timer has a minimum setting of one minute, allowing flexibility for various applications.

• Compatible with a variety of electrical devices including lights, heaters, and fans.
• Supercapacitor provides backup power for up to four days in case of power outages.
• NEMA 3R rated for outdoor or indoor use, ensuring durability.

Product Highlights

The NSI Tork E101B is designed for versatile applications, supporting automatic adjustments and leap year compensation.

Product Information

Standard Information

• Brand: NSI
• Manufacturer: NSi Industries

Technical Specifications

• Amperage Rating: 30 A
• Dimensions: 5.062 inches L x 3.062 inches W x 8.312 inches H
• Display Type: Digital LED
• Enclosure Type: NEMA 3R
• Mounting Type: Threaded
• Number of Channels: 1
• Operation Mode: 24 hr
• Temperature Rating: -40 to 149 degrees F
• Time Setting: 1 min to 24 hr
• Voltage Rating: 120 to 277 VAC
• Horsepower: 1 hp, 2 hp
• Contact Form: SPST
• Number of Poles: 1
