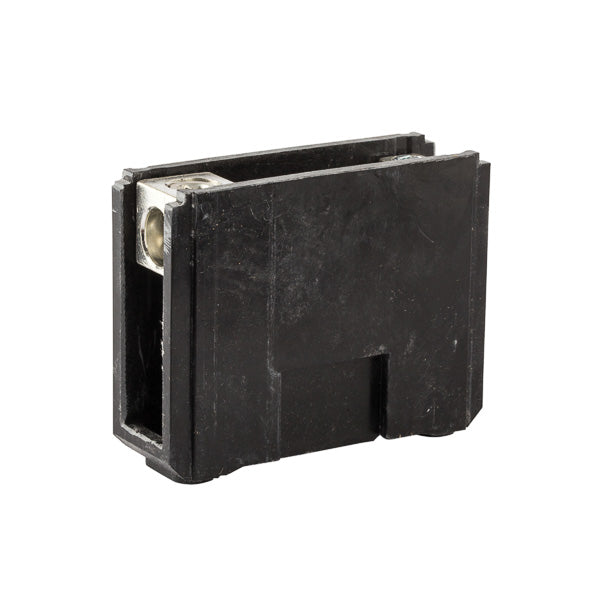

NSI AL-R2-K6 Connector Bloks Double Primary Power Distribution Block 600 VAC

Product Description

The NSI AL-R2-K6 Connector Bloks is a double primary power distribution block designed to handle up to 600 VAC and 760 A. It supports wire sizes from four AWG to five hundred kcmil. This product is made of aluminum and comes in a black finish, with compact dimensions of five point five inches in length, two point nine inches in width, and three point two five inches in height.

• Rated for 600 VAC and 760 A
• Features two primary connections and six secondary connections per pole
• Compatible with wire sizes from four AWG to 500 kcmil

Product Highlights

Each distribution block can be used alone or in combination with others to create a multi-block setup. They are mounted in a sturdy glass-filled polyester base, ensuring durability and reliability in various electrical applications.

Product Information

Standard Information

• Brand: NSI
• Manufacturer: NSi Industries

Technical Specifications

• Color: Black
• Dimensions: 5.5 in L x 2.9 in W x 3.25 in H
• Primary Connections/Pole: 2
• Secondary Connections/Pole: 6
• Type: Double Primary
• Voltage Rating: 600 VAC
• Amperage Rating: 760 A
• Wire Size: 4 AWG to 500 kcmil
• Material: Aluminum
