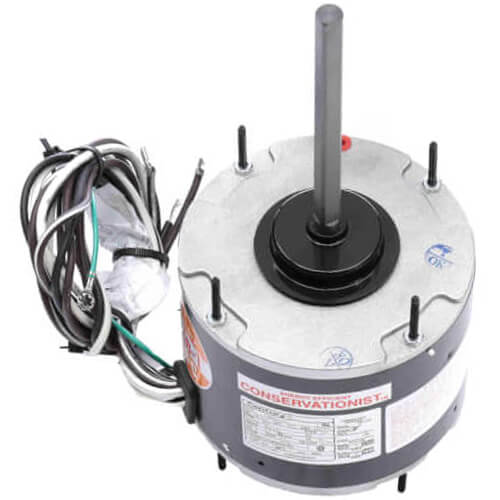

AMERICA ORM5484BF HeatMaster Condenser Fan Motor 208-230V 1/8 1/5 HP

Product Description

The AMERICA ORM5484BF HeatMaster Condenser Fan Motor is designed for various condensation fan applications. This motor operates at 208-230 volts and at eight hundred twenty-five revolutions per minute. It features a permanent split capacitor design and a totally enclosed build, which ensures durability. It includes automatic overload protection and meets UL and CSA approval standards.

• All angle mounting for versatile installation
• Energy-efficient PSC design
• Reversible rotation for application flexibility

Product Highlights

Product Information

Standard Information

• Type: Permanent Split Capacitor
• Horse Power: 1/8, 1/15

Technical Specifications

• Voltage: 208/230V
• Duty: Air Over
• Poles: 8
• RPM: 825
• Mount: Extended Studs
• Bearings: Sleeve
• Rotation: Reversible
• Enclosure Type: Totally Enclosed
• Speeds: 1
• Hertz: 60
• Phase: 1
• Frame: 48
• Amperage: 1
• Insulation Class: F
• Overload Protection: Automatic
• Max Ambient Temp: 158°F
• Motor Orientation: Any
• Output HP: 1/8-1/15
• Output KW: 0.10
• Service Factor: 1
• Frequency: 60 Hz
• Current: 1.0 A
• Frame Material: Rolled Steel
• Shaft Type: Double Flat
• Overall Length: 11.62 inches
• Frame Length: 3.62 inches
• Shaft Diameter: 0.500 inches
• Shaft Extension: 6.5 inches
