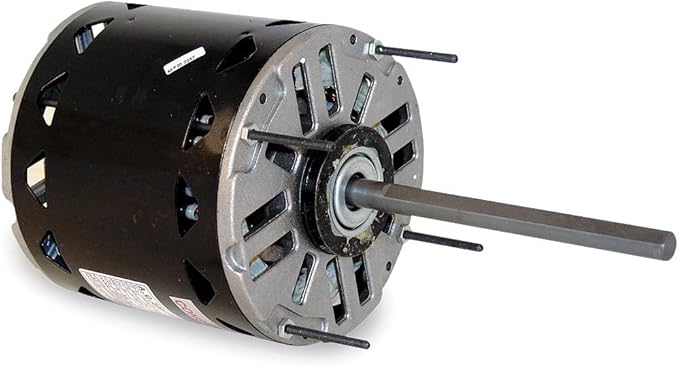

AMERICA FDL6001A Fan and Blower Motor 1/2 Ð 1/6 HP

Product Description

The AMERICA FDL6001A is a reliable fan and blower motor designed for air-over applications. It operates at 1075 RPM with a power output of 1/2 Ð 1/6 HP and requires 115 volts for operation. This motor features reversible rotation, making it versatile for various setups.

• Operates at 1075 RPM
• Includes thermal protection
• Class B insulation, suitable for high ambient temperatures

Product Highlights

Product Information

Standard Information

• Brand: Century
• Manufacturer: Century Electric/AO Smith Motors Co

Technical Specifications

• Speed: 1075 RPM
• Voltage: 115 V
• Horsepower: 0.17 HP
• Item Package Quantity: 1
• Phase: 1
• Output HP: 1/2-1/6 HP
• Service Factor: 1
• Frame: 48
• Enclosure: Open Enclosed
• Thermal Protection: Automatic
• Efficiency: 64.3%
• Ambient Temperature: 40 ¡C
• Frequency: 60 Hz
• Current: 7.0 A
• Duty: Air Over
• Insulation Class: F
• Electrical Type: Permanent Split Capacitor
• Starting Method: Across The Line
• Poles: 6
• Rotation: Reversible
• Motor Orientation: Horizontal
• Drive End Bearing: Ball
• Frame Material: Rolled Steel
• Shaft Type: Flat
• Overall Length: 10.36 inches
