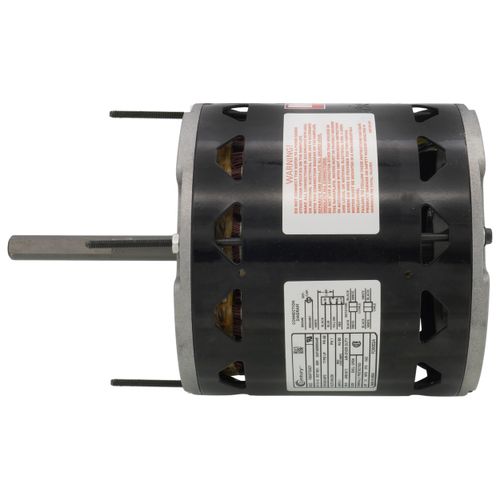

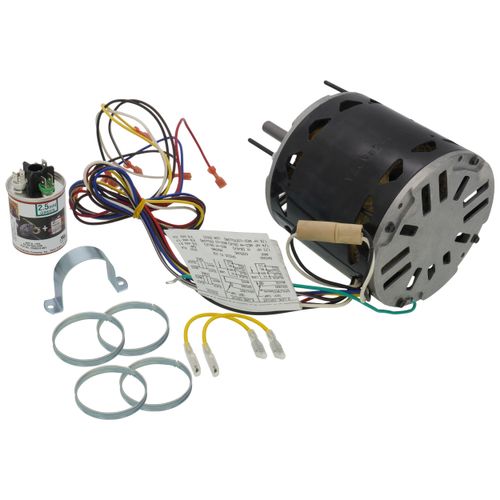

AMERICA FD6002A Masterfit General Purpose Motor 1/8, 1/3 HP (5-5/8inch)

Product Description

The AMERICA FD6002A Masterfit General Purpose Motor is a PSC (Permanent Split Capacitor) motor that operates at 208-230 volts. This motor provides 1/8 or 1/3 horsepower with a speed of 825 RPM. With an OAO (Open Air Over) enclosure, it is designed for continuous duty applications, making it ideal for various tasks. The motor features reversible rotation and four different speeds for versatile use.

• Operates at 208-230 volts
• Delivers a speed of 825 RPM
• Reversible rotation for flexibility

Product Highlights

This reliable motor ensures efficient performance in diverse environments.

Product Information

Standard Information

• Product Type: Permanent Split Capacitor
• Horse Power: 1/3, 1/8

Technical Specifications

• Voltage: 208/230V
• Bearings: Sleeve
• Rotation: Reversible
• Enclosure Type: Open Air Over
• RPM: 825
• Mount: Extended Studs
• Poles: 8
• Phase: 1
• Speeds: 4
• Hertz: 60
• Amperage: 2.1
• Frame: 48
• Insulation Class: B
• Overload Protection: Automatic
• Max Ambient Temp (°F): 104
• Motor Orientation: Horizontal
• Motor Diameter: 5.625 inches
• Shaft Diameter: 1/2 inch
• Shaft Length: 3-1/2 inches
• Service Factor (SF): 1.00
• Thermal Protection: Automatic
• Maximum Ambient Temperature: 40 C
• Duty Cycle: Continuous
