AMERICA FD6000A PSC Motor 1/2 - 1/6 Hp 5-5/8 Inches

Product Description

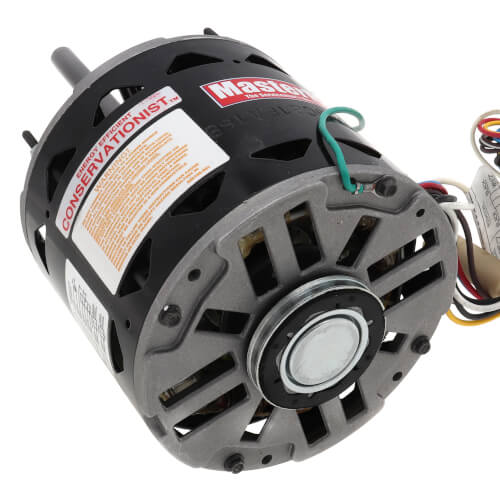

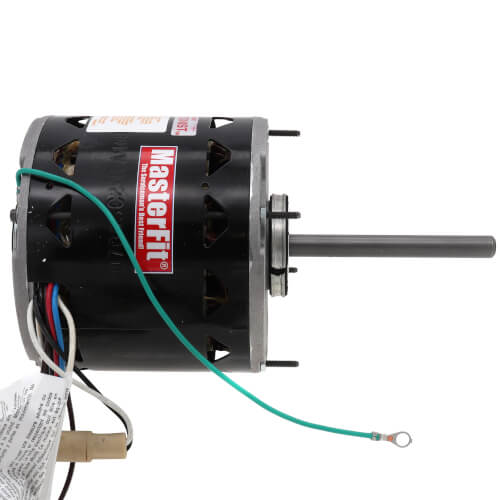

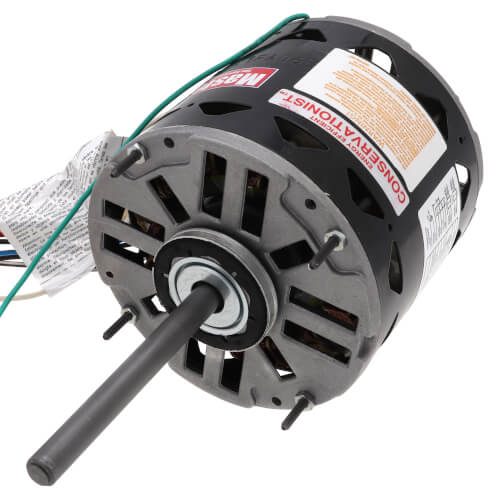

The AMERICA FD6000A is a 5-5/8 inches PSC motor with a horsepower range of 1/2 to 1/6 HP and operates at a speed of 1075 RPM. This motor is designed for direct drive fan and blower applications. It is equipped with thermal protection and features an open air over design suitable for ambient temperatures up to 40 degrees Celsius. The motor is reversible and works on a voltage of 208-230V at 60 Hz.

• Permanent Split Capacitor design
• Thermal protection with an open air over design
• Reversible rotation with quick connect terminals

Product Highlights

The motor's features make it suitable for various HVAC applications, ensuring reliable operation and efficient performance.

Product Information

Standard Information

• Product Type: Motor
• Type: Permanent Split Capacitor

Technical Specifications

• Diameter: 5-5/8 inches
• Horse Power: 1/2 - 1/6
• Voltage: 208/230V
• Speeds: 4
• Duty: Air Over
• Phase: 1
• RPM: 1075
• Poles: 6
• Mount: Resilient Ring - Extended Studs
• Rotation: Reversible
• Bearings: Sleeve
• Frame: 48
• Hertz: 60
• Enclosure Type: Open Air Over
• Insulation Class: B
• Amperage: 3.9
• Overload Protection: Automatic
• Max Ambient Temp: 104 °F
• Motor Orientation: Horizontal
• Output HP: 1/2 - 1/6 Hp
• Output KW: 0.37 kW
• Service Factor: 1
• Thermal Protection: Automatic
• Ambient Temperature: 40 °C
• Frequency: 60 Hz
• Current: 3.9 A
• UL: Recognized
• CSA: Y
• CE: N
• Number of Speeds: 4
• Electrical Type: Permanent Split Capacitor
• Starting Method: Across The Line
• Mounting: Resilient Ring/Extended Studs
• Frame Material: Rolled Steel
• Shaft Type: Flat
• Overall Length: 10.36 inches
• Frame Length: 4.25 inches
• Shaft Diameter: 0.500 inches
• Shaft Extension: 5.0 inches
• Manufacturer Part Number: FD6000A
• MPN: FD6000A
• UPC: 786674054746
