White-Rodgers 21V51U-843 Univ 2-Stg Hsi Furnace Control Kit - Direct replacement for Goodman PCBBF107S
In Stock - Ships in 1-2 Business Days
Buy a system bundle and save up to 10%!
SHOP ALL BUNDLES WITH THIS PRODUCT INCLUDED
Secure
Ordering
Easy
Returns
100% Fit
Guarantee
Expert
Advice
Fast
Shipping
Product Information

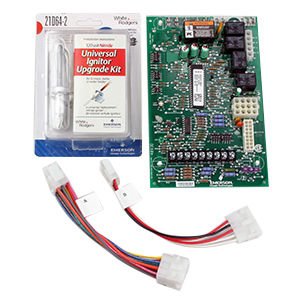

Rodgers HSI Integrated Furnace Control Kit 2Stage Universal Variable Speed 151/2 Inch Lead Length 151/2 Inch Probe Length 24 V 0.45 A Natural Gas/Liquid Propane 17 sec Warm Up 15 sec Prepurge 1/4 Inch Spade Terminals and Molex Plugs Retries: 2 60 min Reset 8 Inch H x 51/4 Inch W x 11/4 Inch D Includes: Keyed Wire Harness and 21D642 Universal Nitride Ignitor
• 120 VAC igniter output
• 120 VAC 2speed inducer output
• 120 VAC humidifier output
• 120 VAC electronic air cleaner output
• AC gas valve output
• 16Pin variable speed circulator output
• Fuse protection 3 amp
• Furnace status LED tricolor (green red and amber)
• Cfm LED (green)
• Heat fan off delay (dipswitch selectable)
• Fan on delay for cooling
• Historical fault retrieval by pushbutton
• YLO Y W W2 R G C O BK/DS/ Dehum terminals
• Pressure switch inputs and monitoring
• Flash microprocessor with nonvolatile memory
• Flame current measurement points
Standard/Approvals: CSA Certified
Application: Residential and Commercial Heating Equipment
